Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ065T5GG02 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 6.5 Inch |
| Resolution: | 480(RGB)×234 | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
Normally White LQ065T5GG02 Sharp LCD Panel 6.5 inch LCM 480×234 400 60:1 Full color CCFL Analog
LQ065T5GG02 Detail
| Panel Brand : | SHARP | |
| Panel Model : | LQ065T5GG02 | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 6.5 inch | |
|
480(RGB)×234 | |
| Display Mode : | TN, Normally White, Transmissive | |
| Active Area : | 142.56×80.73 mm | |
| Outline : | 158.5×95.5 mm | |
| Surface : | Antiglare, Antireflection | |
| Brightness : | 400 cd/m² (Typ.) | |
| Contrast Ratio : | 60:1 (Min.) | |
|
Full color | |
| Response Time : | 30/50 (Typ.)(Tr/Td) | |
|
65/65/40/65 (Typ.)(CR≥5) (L/R/U/D) | |
|
1 pcs CCFL Without Driver | |
| Signal Interface : | TFT Specific Analog RGB , 32 pins | |
| Input Voltage : | 5.3/13.0/-9.3/-10.9/-16.0V (Typ.)(VSH/VGH/VGL/VCC/VSS) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
| Panel Size : | 6.5 inch | ||||||||||
| Dot Resolution : | 480(RGB)×234 | ||||||||||
| Pixel Configuration : | RGB Vertical Stripe | ||||||||||
| Pixel Density : | 82 PPI | ||||||||||
|
16:9 (H:V) | ||||||||||
| Form Factor : | Flat Rectangle Display | ||||||||||
| Dot Pitch : | 0.099×0.345 mm (H×V) | ||||||||||
| Pixel Pitch : | 0.297×0.345 mm (H×V) | ||||||||||
|
192g (Typ.) | ||||||||||
| Surface : | Antiglare, Antireflection | ||||||||||
|
142.56×80.73 mm (H×V) | ||||||||||
| Outline Dimension : | 158.5×95.5 mm (H×V) | ||||||||||
| Outline Depth : | 8.5 (Typ.) mm | ||||||||||
|
Landscape type | ||||||||||
|
Without |
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.

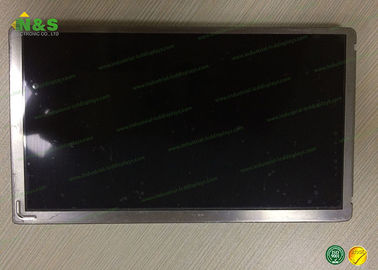

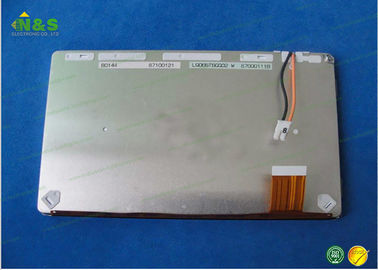

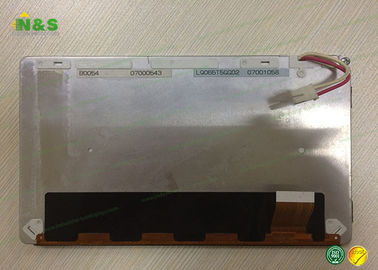

LQ065T5GG02 Picture
