Product Details:
|
| Size: | 21.5 Inch | Outline: | 497.6×292.2×11 Mm |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080 , FHD | Pixel Density: | 102 PPI |
| Aspect Ratio: | 16:9 (H:V) | Touch Panel: | Without |
| Surface: | Antiglare (Haze 25%), Hard Coating (3H) | Pixel Configuration: | RGB Vertical Stripe |
| High Light: | samsung lcd screen,samsung lcd panel replacement |
||

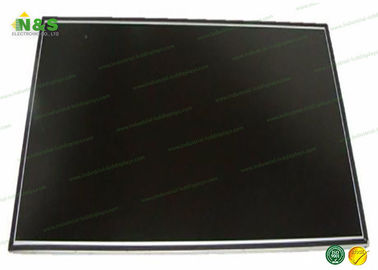

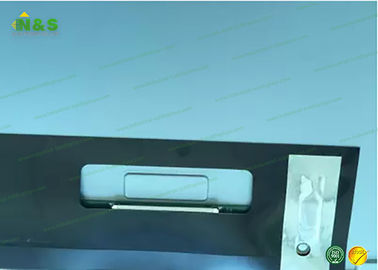

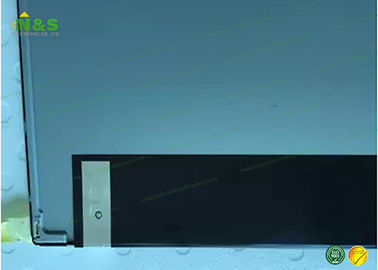

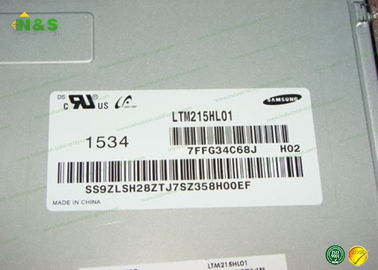

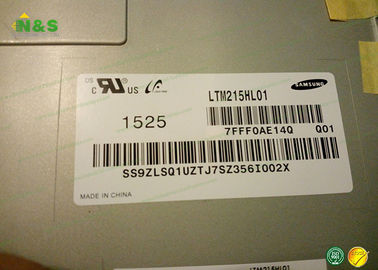

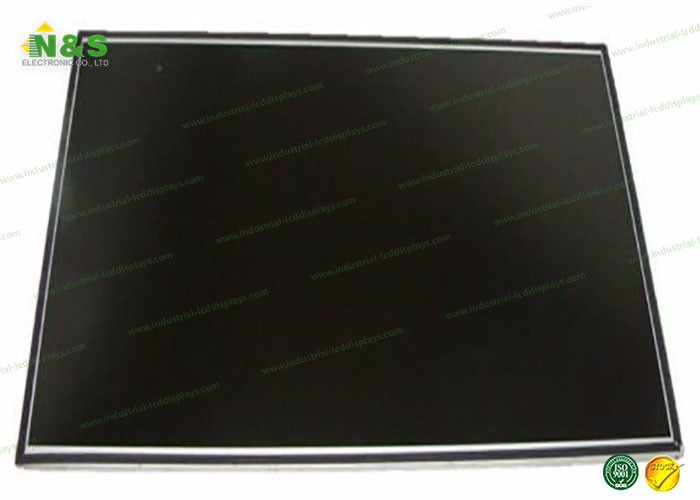

1920*1080 LTM215HL01 Samsung LCD Panel PLS, Normally Black, Transmissive
Sample Charge:
1. Samples charge: According to the LCD panel model. Pls contact us to get details.
2. Samples time: 1-3 working days for stock models.
SAMSUNG LTM215HL01 General Features
Panel Brand : SAMSUNG
Panel Model : LTM215HL01
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 21.5 inch
Resolution : 1920(RGB)×1080 , FHD
Display Mode : PLS, Normally Black, Transmissive
Active Area : 476.064×267.786 mm
Outline : 497.6×292.2×11 mm
Surface : Antiglare (Haze 25%), Hard coating (3H)
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 1000:1 (Typ.)
Display Colors : 16.7M (6-bit + Hi-FRC) , CIE1931 72%
Response Time : 14 (Typ.)(G to G)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 16S2P WLED Without Driver
Signal Interface : LVDS (2 ch, 8-bit) , 30 pins
Input Voltage : 5.0V (Typ.)
SAMSUNG LTM215HL01 Mechanical Features
| Panel Size : | 21.5 inch |
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 102 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.08265×0.24795 mm (H×V) |
| Pixel Pitch : | 0.24795×0.24795 mm (H×V) |
| Weight : | 2.10Kgs (Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 476.064×267.786 mm (H×V) |
| Bezel Area : | 479.8×271.3 mm (H×V) |
| Outline Dimension : | 497.6×292.2 mm (H×V) |
| Outline Depth : | 11.0 (Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
SAMSUNG LTM215HL01 Optical Features
Display Mode : PLS, Normally Black, Transmissive
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 1000 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (6-bit + Hi-FRC)
Color Gamut : 72% NTSC (CIE1931)
Response Time : 14 (Typ.)(G to G)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.25/1.43 (Typ./Max.)(9 points)
SAMSUNG LTM215HL01 Backlight System
| Lamp Position : | Edge light type (Right side) |
| Lamp Type : | WLED |
| Lamp Amount : | 16S2P |
| Lamp Shape : | 2 strings |
| Lamp Life Time : | 40K(Min.) (Hours) |
| Lamp Voltage : | 48.2/53.0V (Typ./Max.) |
| Lamp Current : | 210/230mA (Typ./Max.) |
| Lamps Power Consumption : | 10.12W (Typ.) |
| Interface Type : | Connector |
