Product Details:
|
| Dot Resolution: | 1280(RGB)×1024 , SXGA | Size: | 17.0 Inch |
|---|---|---|---|
| Active Area: | 337.92×270.336 Mm | Outline: | 354.9×290.3×13.3 Mm |
| Pixel Density: | 96 PPI | Dot Pitch: | 0.088×0.264 Mm (H×V) |
| Surface: | Antiglare (Haze 25%), Hard Coating (3H) | Brightness: | 300 Cd/m² (Typ.) |
| High Light: | samsung lcd panel replacement,samsung lcd display panel |
||
Samsung LCD Panel 17.0 inch LTM170EX-L31 Flat Rectangle Display without touch for 1280*1024
Product Application
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
SAMSUNG LTM170EX-L31 Mechanical Features
Panel Size : 17.0 inch
Dot Resolution : 1280(RGB)×1024 (SXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 96 PPI
Aspect Ratio : 5:4 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.088×0.264 mm (H×V)
Pixel Pitch : 0.264×0.264 mm (H×V)
Weight : 1.70Kgs (Max.)
Surface : Antiglare (Haze 25%), Hard coating (3H)
Active Area : 337.92×270.336 mm (H×V)
Bezel Area : 340.92×273.336 mm (H×V)
Outline Dimension : 354.9×290.3 mm (H×V)
Outline Depth : 12.8±0.5 mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without
SAMSUNG LTM170EX-L31 General Features
Panel Brand : SAMSUNG
Panel Model : LTM170EX-L31
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 17.0 inch
Resolution : 1280(RGB)×1024 , SXGA
Display Mode : TN, Normally White, Transmissive
Active Area : 337.92×270.336 mm
Outline : 354.9×290.3×13.3 mm
Surface : Antiglare (Haze 25%), Hard coating (3H)
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 1000:1 (Typ.)
Display Colors : 16.7M (8-bit) , CIE1931 72%
Response Time : 1.3/3.7 (Typ.)(Tr/Td)
Viewing Angle : 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 4 pcs CCFL Without Driver
Signal Interface : LVDS (2 ch, 8-bit) , 30 pins
Input Voltage : 5.0V (Typ.)
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
SAMSUNG LTM170EX-L31 Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 1.3/3.7 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.33 (Max.)(9 points) |
SAMSUNG LTM170EX-L31 Compatible Model
| Panel Model | Size | Type | Resolution | cd/m2 | C/R | Backlight | Color |
| M170E7-L02 | 17.0" | Panel | 1280×1024 | 300 | 800:01:00 | CCFL | 16.2M |
| M170E7-L01 | 17.0" | Panel | 1280×1024 | 300 | 700:01:00 | CCFL | 16.2M |
| LTM170EX-L31 | 17.0" | Panel | 1280×1024 | 300 | 1000:01:00 | CCFL | 16.7M |
| LTM170EX-L21 | 17.0" | Panel | 1280×1024 | 300 | 700:01:00 | CCFL | 16.2M |
| LTM170EX-L02 | 17.0" | Panel | 1280×1024 | 300 | 700:01:00 | CCFL | 16.2M |
| LTM170EX-L01 | 17.0" | Panel | 1280×1024 | 270 | 500:01:00 | CCFL | 16.2M |
| CLAA170ES01E | 17.0" | Panel | 1280×1024 | 300 | 700:01:00 | CCFL | 16.2M |
| CLAA170ES01 | 17.0" | Panel | 1280×1024 | 300 | 700:01:00 | CCFL | 16.2M |
Why Choose our company?
Our LCD module can ensure quantity of sale especial for the Hard-to-find LCD screen replacements.
Reliability test and full examination to ensure the high quality of the display.
Strictly ISO9001 quality management system.
Mature and Professional after-sale service.
Various cooperation experience with big brands, such as AUO, Chimei, Hitachi, Innolux, KOE, Tianma, LG, NEC, Samsung, Sharp, Optrex and more other TFT LCD Display brands.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| AMS499QP07 | Samsung | 5.0" | 1080×1920 |
| AMS499QP01 | Samsung | 5.0" | 1080×1920 |
| AMS568AT01 | Samsung | 5.7" | 1440×2560 |
| AMS840CS04 | Samsung | 8.4" | 1600×2560 |
| AMS520BQ04-0 | Samsung | 5.2" | 1080×1920 |
| AMS309PW01-0 | Samsung | 3.1" | 720×720 |
| AMS465GS45 | Samsung | 4.7" | 720×1280 |

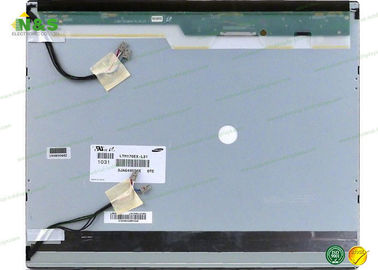

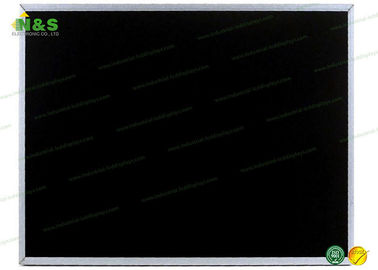

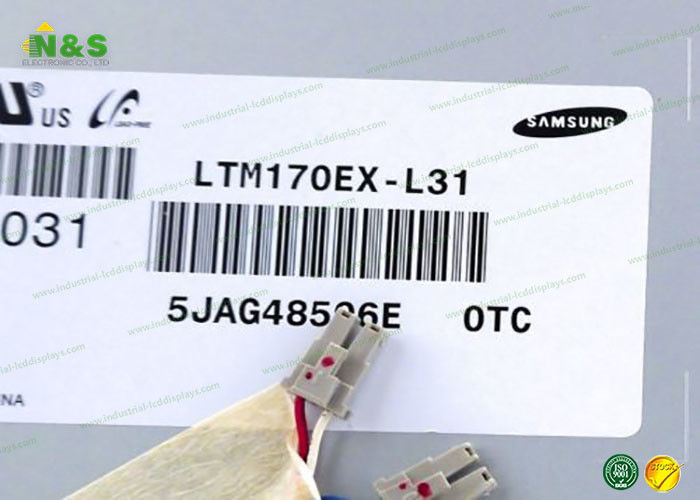

Details Pictures
