Product Details:
|
| Panel Type: | A-Si TFT-LCD , Panel | Panel Size: | 17.0 Inch |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Brightness: | 300 Cd/m² (Typ.) |
| Outline Depth: | 17.0±0.5 Mm | Weight: | TBD |
| Form Factor: | Flat Rectangle Display | Dot Resolution: | 1280(RGB)×1024 , SXGA |
| High Light: | samsung lcd panel replacement,samsung lcd display panel |
||

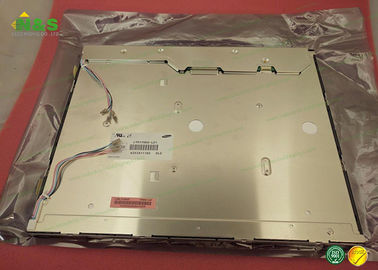

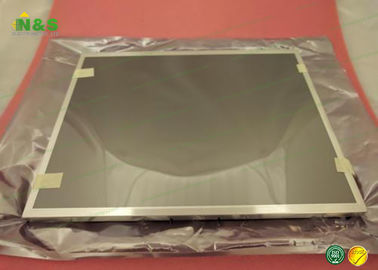

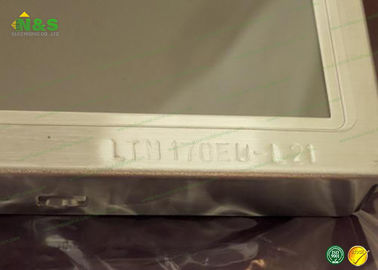

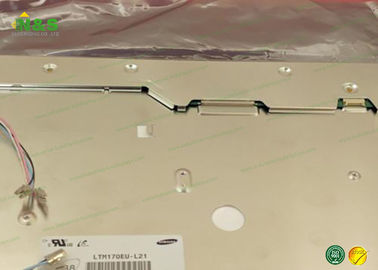

Original 17.0 inch LTM170EU-L21 lcd monitor samsung high brightness 1280*1024
Why Choose our company?
Optical Features
Display Mode : TN, Normally White, Transmissive
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 700 : 1 (Typ.) (Transmissive)
Display Color : 16.2M (6-bit + FRC)
Color Gamut : 72% NTSC (CIE1931)
Response Time : 2/6 (Typ.)(Tr/Td)
Viewing Angle : 70/70/75/60 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 12 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.33 (Max.)(9 points)
Mechanical Features
| Panel Size : | 17.0 inch |
| Dot Resolution : | 1280(RGB)×1024 (SXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 96 PPI |
| Aspect Ratio : | 5:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.088×0.264 mm (H×V) |
| Pixel Pitch : | 0.264×0.264 mm (H×V) |
| Weight : | TBD |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 337.92×270.336 mm (H×V) |
| Bezel Area : | 341.6×274.016 mm (H×V) |
| Outline Dimension : | 358.5×296.5 mm (H×V) |
| Outline Depth : | 17.0±0.5 mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
SAMSUNG LTM170EU-L21 General Features
Panel Brand : SAMSUNG
Panel Model : LTM170EU-L21
Panel Size : 17.0 inch
Resolution : 1280(RGB)×1024 , SXGA
Display Mode : TN, Normally White, Transmissive
Active Area : 337.92×270.336 mm
Outline : 358.5×296.5×17.5 mm
Surface : Antiglare (Haze 25%), Hard coating (3H)
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 700:1 (Typ.)
Display Colors : 16.2M (6-bit + FRC) , CIE1931 72%
Response Time : 2/6 (Typ.)(Tr/Td)
Viewing Angle : 70/70/75/60 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 4 pcs CCFL Without Driver
Signal Interface : LVDS (2 ch, 8-bit) , 30 pins
Input Voltage : 5.0V (Typ.)
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate
Questions & Answers:
Q1: How can you trust us?
- We are a professional team for the LCD panel international trade already for 6 years. We own the more professional & more competitive sourcing line & agency for the LCD Screen panels.
Q2: When can I get the update price?
- Within 24 hours after we get your inquiry.
Q3: What is your product capacity per day?
- 500-1000 pcs/day. We test each pcs LCD panels before shipment.
Q4: What is the payment term?
- T/T, Western Union, MoneyGram, PayPal.
Q6: Do you offer after-sale service?
- Yes, we do. We have strict QC system to make sure within our guarantee period(12 months), please contact us ASAP if there is any question, we will try our best to resolve it.
Q7: Which brands' LCD panel replacements could we handle?
- Our LCD screen panels contained but not limited to AUO, Chimei, Hitachi, Innolux, KOE, Tianma, LG, NEC, Samsung, Sharp, Optrex and more brand for the industrial TFT LCD module.
Q8: Do you provide samples?
- Yes, we are glad to offer you our samples for checking quality. If you are interested in some of our products, please feel free to contact us for
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AMS767KC04-1 | Samsung | 7.7" | 1280×800 |
| AMS395GB04 | Samsung | 4.0" | 360×640 |
| AMS410GC01-0 | Samsung | 4.1" | 480×800 |
| AMS370FG | Samsung | 3.7" | 480×800 |
| AMS465GS16-1 | Samsung | 4.7" | 720×1280 |
| AMS427GL34-1 | Samsung | 4.3" | 480×800 |
