Samsung LTL101AL06-003 LCD Display Panel 10.1 inch with 228.21*148.86 mm

Samsung LTL101AL06-003 LCD Display Panel 10.1 inch with 228.21*148.86 mm
Samsung LTL101AL06-003 LCD Display Panel 10.1 inch with 228.21*148.86 mm

Large Image :  Samsung LTL101AL06-003 LCD Display Panel 10.1 inch with 228.21*148.86 mm

Product Details:
Place of Origin: Japan,Korea
Brand Name: Samsung LCD Panel
Certification: ISO9001
Model Number: LTL101AL06-003
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 100 PCS PER DAY

Samsung LTL101AL06-003 LCD Display Panel 10.1 inch with 228.21*148.86 mm

Description
Panel Brand: SAMSUNG Panel Model: LTL101AL06-003
Panel Type: A-Si TFT-LCD , Panel Panel Size: 10.1 Inch
Brightness: 400 Cd/m² (Typ.) Contrast Ratio: 900:1 (Typ.)
Display Colors: 16.2M (6-bit + FRC) , CIE1931 50% Response Time: 30 (Typ.)(Tr+Td)
High Light:

samsung lcd panel replacement

,

samsung lcd display panel

Samsung LTL101AL06-003 LCD Display Panel 10.1 inch with 228.21*148.86 mm



SAMSUNG LTL101AL06-003 General Features

Panel Brand : SAMSUNG
Panel Model : LTL101AL06-003
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 10.1 inch
Resolution : 1280(RGB)×800 , WXGA
Display Mode : PLS, Normally Black, Transmissive
Active Area : 216.96×135.6 mm
Outline : 228.21×148.86 mm
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 900:1 (Typ.)
Display Colors : 16.2M (6-bit + FRC) , CIE1931 50%
Response Time : 30 (Typ.)(Tr+Td)
Viewing Angle : 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLED
Signal Interface : LVDS (1 ch, 8-bit)
Input Voltage : 3.3V (Typ.)



The reasons you choose us

1).More competitive price! As aprofessional LCD Distributor,we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.

2).Great quality! All LCD Screen we sent are with good quality guarantee,100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time,so we could promise save much more money on the shipping cost and betterservice is offered!
5).Best sale-service!Professional team to service with you before sale, on sale & after service.



SAMSUNG LTL101AL06-003 Mechanical Features

Panel Size : 10.1 inch
Dot Resolution : 1280(RGB)×800 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 149 PPI
Aspect Ratio : 16:10 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0565×0.1695 mm (H×V)
Pixel Pitch : 0.1695×0.1695 mm (H×V)
Weight : 130±10g
Active Area : 216.96×135.6 mm (H×V)
Bezel Area : 218.56×137.2 mm (H×V)
Outline Dimension : 228.21×148.86 mm (H×V)
Landscape or Portrait : Landscape type
Touch Panel : Without



Our Service

• Long lasting product cycle for continuity thru all phases of project rollouts and servicing

• Easy-to-install console, Open Frame chassis-mount display

• Slim dimensions enable better enclosure designs

• Multiple mounting options.

• All steel construction provides rugged frame for public use environments

• Two independent touch points

• Improved power efficiency and reduced consumption

• ISO9001 approvals.



Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
AMS499QP07 Samsung 5.0" 1080×1920
AMS499QP01 Samsung 5.0" 1080×1920
AMS568AT01 Samsung 5.7" 1440×2560
AMS840CS04 Samsung 8.4" 1600×2560
AMS520BQ04-0 Samsung 5.2" 1080×1920

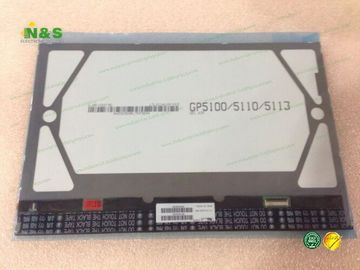

Details Pictures for Samsung LTL101AL06-003 LCD Display Panel



Samsung LTL101AL06-003 LCD Display Panel 10.1 inch with 228.21*148.86 mm 0
