Product Details:
|
| Panel Model: | LM32C041 | Resolution: | 320(RGB)×240 , QVGA |
|---|---|---|---|
| Display Mode: | STN, Normally Black | Panel Size: | 5.5 Inch |
| Display Colors: | 512 (3-bit) | Active Area: | 111.335×83.485 Mm |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||

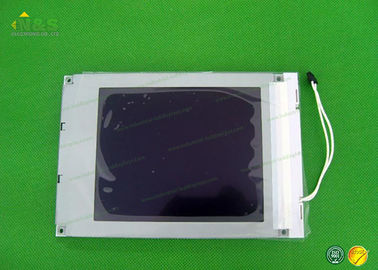

5.5 inch STN, Normally Black LM32C041 Sharp LCD Panel with 320*240
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
SHARP LM32C041 General Features
Panel Brand : SHARP
Panel Model : LM32C041
Panel Type : CSTN-LCD , Panel
Panel Size : 5.5 inch
Resolution : 320(RGB)×240 , QVGA
Display Mode : STN, Normally Black
Active Area : 111.335×83.485 mm
Outline : 149.2×116.4 mm
Display Colors : 512 (3-bit)
Lamp Type : 2 pcs CCFL Without Driver
Signal Interface : Parallel RGB (1 ch, 3-bit) , 20 pins
SHARP LM32C041 Mechanical Features
| Panel Size : | 5.5 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 73 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.116×0.348 mm (H×V) |
| Pixel Pitch : | 0.348×0.348 mm (H×V) |
| Weight : | 320g (Typ.) |
| Active Area : | 111.335×83.485 mm (H×V) |
| Bezel Area : | 115.6×86.2 mm (H×V) |
| Outline Dimension : | 149.2×116.4 mm (H×V) |
| Outline Depth : | 24.8 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
More details:
Display Mode : STN, Normally Black
Display Color : 512 (3-bit)
Lamp Position : Direct light type
Lamp Type : CCFL
Lamp Amount : 2 pcs
Lamp Shape : U shape
Lamp Replaceable : Replaceable
Interface Type : Connecto
Our services:
1.We thought that every customer is our family member.
2. Best service with help is needed, if you have any problem, the first one you thought for help must be our team
3. Try our best to meet our customers’ requirements.
4. 24 hours online.
5. Check the item one by one before packing.
6. Delivery the product within our promise time.
7. Follow the order all the time, till you sell them successfully without any problem.
8. Solve all the problems after we got complaints from dear customers, no excuse! Because your problem, is ours.
9. Technical support. We have being already made these LCD Screen Panels for about 6 years in the international trade. Our product contained but not limited to Medical LCD display, Aerospace LCD screen, Gaming LCD Panels, Military LCD panels, Kiosk LCD display, Transportation LCD panels, Industrial LCD panels and more.
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM016LC1S07 | SHARP | 1.9" | 96×128 |
| LS050K3SX06A | SHARP | 5.0" | 720×1280 |
| LK460D3HA10 | SHARP | 46" | 1920×1080 |
| LK315T3HB874 | SHARP | 31.5" | 1366×768 |
| LK315T3HB873 | SHARP | 31.5" | 1366×768 |
| LQ0DZC0156 | SHARP | 40" | 1920×1080 |
| LX080M1BB01 | SHARP | 8.0" | 1920×1200 |
| LS050K3SX09 | SHARP | 5.0" | 720×1280 |
| LQ315D1EG02 | SHARP | 31.5" | 3840×2160 |
| JE0DZ1C0093 | SHARP | 60" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Contact Person: savvy,ren
Tel: +8613302928193
