Product Details:
|
| Panel Size: | 15.6 Inch | Aspect Ratio: | 16:9 (H:V) |
|---|---|---|---|
| Panel Brand: | LG Display | Resolution: | 1920(RGB)×1080 (FHD) |
| Pixel Configuration: | RGB Vertical Stripe | Weight: | 320/330g (Typ./Max.) |
| Outline Depth: | 3.4 (Max.) Mm | Surface: | Antiglare, Hard Coating (3H) |
| High Light: | lg display panel,lg replacement screen |
||

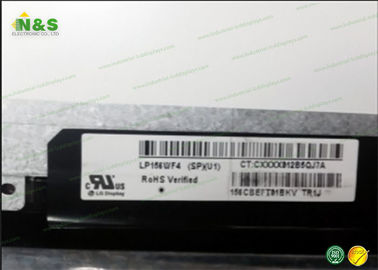

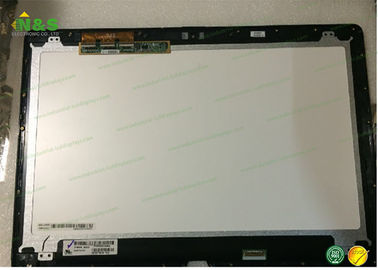

15.6 inch LP156WF4-SPU1 without touch, Original and high brightness 1920*1080
Optical Features
Display Mode : AH-IPS, Normally Black, Transmissive
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 400 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Color Gamut : 60% NTSC (CIE1931)
Response Time : 35 (Typ.)(Tr+Td)
Viewing Angle : 80/80/80/80 (Min.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.40/1.60 (Typ./Max.)(13 points)
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LH530WX1-SH02 | LG Display | 5.3" | 720×1280 |
| LH500WX2-SH01 | LG Display | 5.0" | 720×1280 |
| LH176J03-SH02 | LG Display | 1.8" | 220×176 |
| LH176J04-TH01 | LG Display | 1.8" | 176×220 |
| LM230WF5-TJC3 | LG Display | 23.0" | 1920×1080 |
| LD470DUJ-SFE1 | LG Display | 47" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
General Features
| Panel Brand : | LG Display |
| Panel Model : | LP156WF4-SLB5 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 15.6 inch |
| Resolution : | 1920(RGB)×1080 , FHD |
| Display Mode : | AH-IPS, Normally Black, Transmissive |
| Active Area : | 344.16×193.59 mm |
| Outline : | 359.5×224.13×3.4 mm |
| Shape Style : | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 400:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 60% |
| Response Time : | 35 (Typ.)(Tr+Td) |
| Viewing Angle : | 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 6 strings WLED Embedded (LED Driver) |
| Signal Interface : | LVDS (2 ch, 6-bit) , 40 pins |
Mechanical Features
| Panel Size : | 15.6 inch |
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 141 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.05975×0.17925 mm (H×V) |
| Pixel Pitch : | 0.17925×0.17925 mm (H×V) |
| Weight : | 320/330g (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 344.16×193.59 mm (H×V) |
| Bezel Area : | 347.55×196.9 mm (H×V) |
| Outline Dimension : | 359.5×224.13 mm (H×V) |
| Outline Depth : | 3.4 (Max.) mm |
| Shape Style : | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Holes & Brackets : | Face mounting holes (8 pcs) on up, down slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
TFT LCD Module series:
1. Our standard TFT LCD module size:
1.5", 2.0", 2.2", 2.5", 3.0", 3.5", 4.0", 4.2", 4.3", 4.7", 5.0", 5.5", 5.7", 6.0", 6.4", 7.0", 8.0", 10.1", 10.4", 12.1", etc.
2. Our TFT LCD module brands:
NEC, SHARP, AUO, SAMSUNG, LG, TIANMA, HITACHI, KOE etc.
3. Transflective / sun readable TFT LCD.
4. We are pretty specialize in the EOL & Hard-to-find LCD screen panel.
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us..
Different payment term in different country; our company reserve the right of final explanation.
Please contact us for more information. Thank you.
Packaging & Delivery
Packaging Details:
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Lead time: 1-3 working days for the sample orders.
