SHARP LCD Display Panel LQ065T9BR51 6.5 inch for Automotive Display panel

SHARP LCD Display Panel LQ065T9BR51 6.5 inch for Automotive Display panel
SHARP LCD Display Panel LQ065T9BR51 6.5 inch for Automotive Display panel SHARP LCD Display Panel LQ065T9BR51 6.5 inch for Automotive Display panel SHARP LCD Display Panel LQ065T9BR51 6.5 inch for Automotive Display panel

Large Image :  SHARP LCD Display Panel LQ065T9BR51 6.5 inch for Automotive Display panel

Product Details:
Place of Origin: Japan,Korea
Brand Name: Sharp LCD Panel
Certification: ISO9001
Model Number: LQ065T9BR51
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 100 PCS PER DAY

SHARP LCD Display Panel LQ065T9BR51 6.5 inch for Automotive Display panel

Description
Panel Model: LQ065T9BR51 Panel Type: A-Si TFT-LCD , Panel
Panel Size: 6.5 Inch Outline: 155×89.2 Mm
Surface: Antiglare Brightness: 220 Cd/m² (Typ.)
Frequency: 60Hz Lamp Type: 1 Pcs CCFL
High Light:

sharp lcd display panels

,

sharp lcd flat screen

SHARP LCD Display Panel LQ065T9BR51 6.5 inch for Automotive Display panel



SHARP LQ065T9BR51 General Features

Panel Brand : SHARP
Panel Model : LQ065T9BR51
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 6.5 inch
Resolution : 400(RGB)×240 , WQVGA
Display Mode : TN, Normally White, Transflective
Active Area : 143.4×79.326 mm
Outline : 155×89.2 mm
Surface : Antiglare
Brightness : 220 cd/m² (Typ.)
Contrast Ratio : 60:1 (Typ.)(Transmissive) 7:1 (Typ.)(Reflective)
Display Colors : Full color
Response Time : 15/35 (Typ.)(Tr/Td)
Viewing Angle : 50/50/40/50 (Typ.)(CR≥5) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 1 pcs CCFL
Signal Interface : Analog RGB + Composite Video (NTSC/PAL) , 24 pins
Input Voltage : 5/13/-16V (Typ.)(VSH/VGH/VGL)



SHARP LQ065T9BR51 Mechanical Features

Panel Size : 6.5 inch
Dot Resolution : 400(RGB)×240 (WQVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 72 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.1195×0.3305 mm (H×V)
Pixel Pitch : 0.3585×0.3305 mm (H×V)
Weight : 190±10g
Surface : Antiglare
Active Area : 143.4×79.326 mm (H×V)
Outline Dimension : 155×89.2 mm (H×V)
Outline Depth : 12.5 (Typ.) mm
Landscape or Portrait : Landscape type
Touch Panel : Without



Packing & Delivery for our LCD Screen Panel Replacements:

1. Anti-static Bag Packing.

2. Anti-Shock Bubble Bag Packing

3. Foam and Hard Carton Packing

4. Picked up by forward and delivered by express services.



FAQ

Q1: How do we place an order?

A1: Please kindly send us an email specifying the item No., replacements, quantity,other specifications for the LCD Screen to place an order.

Q2: How do we make the payment?

A2: We accept T/T, Western Union, MoneyGram, Paypal.

Q3: What's the delivery time?

A3: The delivery time is normally 1-3 working days after payment.

Q4: How would the goods be shipped?

A4: We ship via DHL, UPS, TNT and others.



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LQ055T3SX04 SHARP 5.5" 1080×1920
LQ079L1SX06 SHARP 7.9" 1536×2048
LQ079L1SX04 SHARP 7.9" 1536×2048
LQ133M1JW08 SHARP 13.3" 1920×1080
LQ156D1JX02 SHARP 15.6" 3840×2160
LQ156Z1JW01 SHARP 15.6" 3200×1800

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

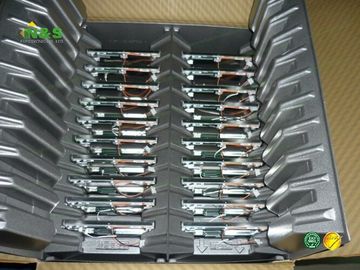

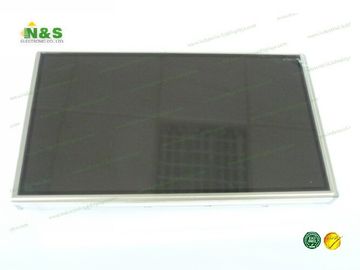

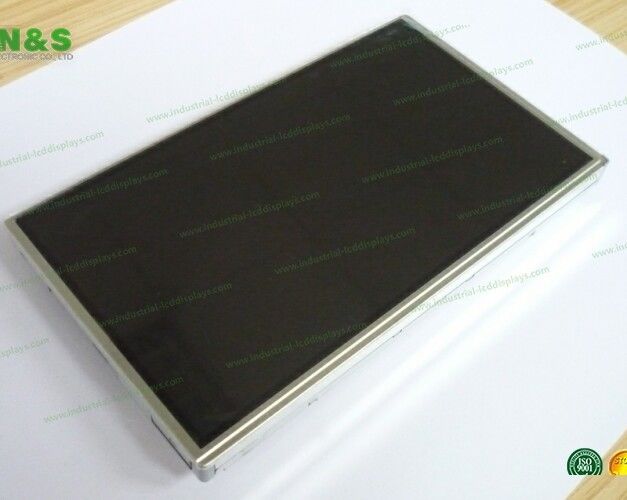

Details Pictures for  SHARP LCD Display Panel LQ065T9BR51



SHARP LCD Display Panel LQ065T9BR51 6.5 inch for Automotive Display panel 0





SHARP LCD Display Panel LQ065T9BR51 6.5 inch for Automotive Display panel 1
