Product Details:
|
| Contrast Ratio: | 300:1 (Typ.) | Display Colors: | 262K (6-bit) , CIE1931 50% |
|---|---|---|---|
| Viewing Angle: | 60/60/40/60 (Typ.)(CR≥10) (L/R/U/D) | Frequency: | 60Hz |
| Panel Type: | A-Si TFT-LCD , Panel | Panel Size: | 3.5 Inch |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
LQ035Q1DG02 Sharp LCD Screen Replacements with 76.9*63.9*4.45 mm
| Panel Brand : | SHARP |
| Panel Model : | LQ035Q1DG02 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 3.5 inch |
| Resolution : | 320(RGB)×240 , QVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 70.56×52.92 mm |
| Outline : | 76.9×63.9×4.45 mm |
| Surface : | Antiglare, Hard coating (2H) |
| Brightness : | 320 cd/m² (Typ.) |
| Contrast Ratio : | 300:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 50% |
| Response Time : | 30/30 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/40/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 6S1P WLED |
| Signal Interface : | Parallel RGB (1 ch, 8-bit) + SPI , 71 pins |
| Input Voltage : | 3.3/3.3V (Typ.)(VCI/VDDIO) |
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.
| Panel Size : | 3.5 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 115 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0735×0.2205 mm (H×V) |
| Pixel Pitch : | 0.2205×0.2205 mm (H×V) |
| Weight : | 43g (Max.) |
| Surface : | Antiglare, Hard coating (2H) |
| Active Area : | 70.56×52.92 mm (H×V) |
| Bezel Area : | 71.8×54.0 mm (H×V) |
| Outline Dimension : | 76.9×63.9 mm (H×V) |
| Outline Depth : | 4.25±0.2 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (4-wire Resistive) |
Company Strength:
1. ISO9001 certificated, Factory Direct Supplied
2. RoHS Compliant, Lead Free, Reach Compliant
3. Competitive Price and Short Lead-time
4. Professional Team with Rich Experiences in Design/Mfg/Quality Control
5. Small MOQ Support & Fast Response to Customers
6. Long Product Life Time
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |

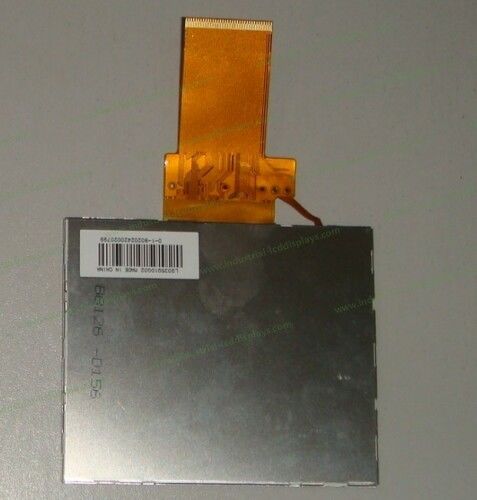

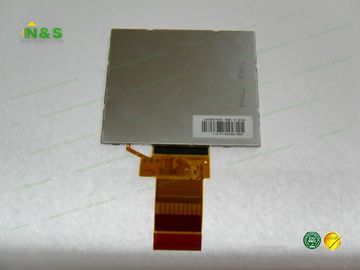

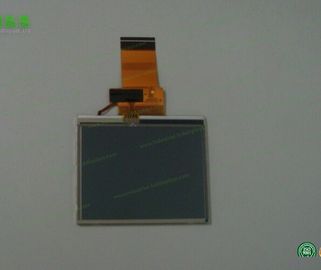

Details Pictures for LQ035Q1DG02
