Product Details:
|
| Panel Size: | 11.6 Inch | Panel Brand: | LG Display |
|---|---|---|---|
| Brightness: | 350 Cd/m² (Typ.) | Weight: | 180/200 (Typ./Max.) |
| Display Mode: | IPS, Normally Black, Transmissive | Resolution: | 1920(RGB)×1080 , FHD |
| High Light: | lg lcd display,lg replacement screen |
||

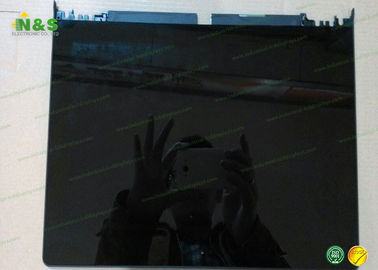

High Resolution 1920*1080 LG Display LP116WF1-SPA2 for11.6 inch without touch
LG Display LP116WF1-SPA2 General Features
Panel Brand : LG Display
Panel Model : LP116WF1-SPA2
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 11.6 inch
Resolution : 1920(RGB)×1080 , FHD
Display Mode : IPS, Normally Black, Transmissive
Active Area : 256.32×144.18 mm
Outline : 268.9×158×3.25 mm
Shape Style : Slim (PCBA Flat, Depth ≤3.2mm)
Surface : Glare (Haze 0%), Hard coating (3H)
Brightness : 350 cd/m² (Typ.)
Contrast Ratio : 800:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 25 (Typ.)(Tr+Td)
Viewing Angle : 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLED Embedded (LED Driver)
Signal Interface : eDP (2 Lanes) , 30 pins
Input Voltage : 3.3V (Typ.)
LG Display LP116WF1-SPA2 Mechanical Features
| Panel Size : | 11.6 inch |
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 190 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0445×0.1335 mm (H×V) |
| Pixel Pitch : | 0.1335×0.1335 mm (H×V) |
| Weight : | 180/200 (Typ./Max.) |
| Surface : | Glare (Haze 0%), Hard coating (3H) |
| Active Area : | 256.32×144.18 mm (H×V) |
| Outline Dimension : | 268.9×158 mm (H×V) |
| Outline Depth : | 3.0/3.25 (Typ./Max.) mm |
| Shape Style : | Slim (PCBA Flat, Depth ≤3.2mm) |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LG Display LP116WF1-SPA2 Optical Features
Display Mode : IPS, Normally Black, Transmissive
Brightness : 350 cd/m² (Typ.)
Contrast Ratio : 800 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 25 (Typ.)(Tr+Td)
Viewing Angle : 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.40/1.60 (Max.)(5/13 points)
Product Application
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
More Information For N&S electronic Co.,LTD:
1. Agent Brand:
* AUO/CPT/CMO/ /Innolux/ TianMa five brands tft lcd moulds in China from 2010, you canget the most competitive price for real products.
2. Quality to be ensure:
All the panels are 100% original and brand new, no fake panels exists, so from N&S you can enjoy the real panels directly from original factory;Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the packages have labels and serial number, you can check them.
3.Quickly delivery:
We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly and to avoid Value Added Tax in china for you, so from HKSEBO you can get more convenient delivery;
4.long-term partner:
* Products are sold to more than 20 countries, so from N&S you can get more stable supplying promise;
5. Super After-Sale service:
N&S will support original factory technology service before and after sale for all your project, you can send all the fack panel back and here return you a new panel;
6.the best TFT LCD solution:
*more tft lcd model detail information including,size, resolution, brightness, operating temperature or life time etc.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LH500X01-SH01 | LG Display | 5.0" | 768×1024 |
| LH500WX1-SH03 | LG Display | 5.0" | 720×1280 |
| LH450WV4-SH02 | LG Display | 4.5" | 480×800 |
| LH430WV4-SH01 | LG Display | 4.3" | 480×800 |
| LH430WV1-SH05 | LG Display | 4.3" | 480×800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Contact Person: savvy,ren
Tel: +8613302928193
