Product Details:
|
| Response: | 5/11 (Tr/Td) Ms | Panel Model: | G150XGE-L05 |
|---|---|---|---|
| Resolution: | 1024(RGB)×768 , XGA | Panel Brand: | CHIMEI INNOLUX |
| Color: | 262K/16.2M | Outline: | 326.50× 253.50×11.50 Mm |
| Panel Type: | A-Si TFT-LCD , Panel | Backlight: | WLED |
| High Light: | lcd display panel,innolux lcd screen |
||
15 inch TFT LCD G150XGE-L05 Innolux LCD Panel with 250 nits Luminance
Structural Parameter
| Operation Temperature | -30 °C ~ 70 °C |
| Storage Temperature | -40°C ~ 70°C |
| Surface Technology | Antiglare (Haze 25%),Hard coating (3H) |
| Active Area | 304.1×228.1 mm |
| Display Area | 307.4×231.3 |
| Outline | 326.50× 253.50×11.50 mm |
| Touch Panel | Without |
| Lamp Position | Edge light type |
| Backlight | WLED |
| Life Time of Lamp | 50K Hours |
| Driver of Backlight | Embedded (LED Driver) |
| Kind of Backlight Interface | Connector |
| Brand of Backlight Interface | E&T |
| Model of Backlight Interface | 3808K-F05N-03L |
| Quantity of Backlight Interface | 1 pcs |
| Pitch of Backlight Interface | 1.25 mm mm |
| Backlight Interface Define | LVDS-20P1C8B-060D |
Main Products:
1. Q: Are you a manufacturer or trading company?
A: We are a trading company who has been specializing in marketing LCD display for 6 years.
2. Q:What’s the quality of your products?
A: In visual inspection, we will make sure no damage, no scratches ,no dusty ,no flaws. And in function inspection, we make sure all functions are 100% tested ok.
3. Q: What is your after-sale service?
A: We offer 100% guarantee on our product. We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
4. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
5. Q: When will you make the delivery?
A: We can make the delivery for the LCD panels you want within 1-3 working days after receipt of payment.
6. Q: what brand of screen could we handle?
A: We can handle LCD panels for the below brand: Samsung, LG, AUO, Sharp, NEC, Hitachi industrial screen and more.
G150XGE-L05 Optical and Electronics Features
| Optical Features | |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 700 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Gamut : | 55% NTSC (CIE1931) |
| Response Time : | 5/11 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.43 (Typ./Max.)(9 points) |
| Electronics Feature | |
| Vertical Frequency : | 60Hz |
| Reverse Scan : | Yes (180°) |
| Total Power Consumption : | 7.5W (Typ.) |

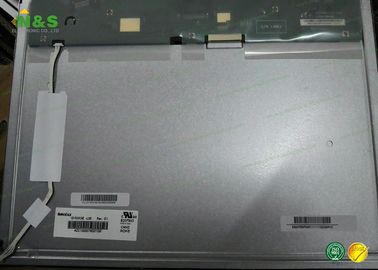

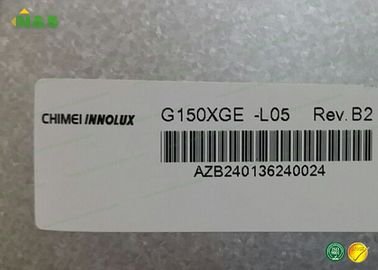

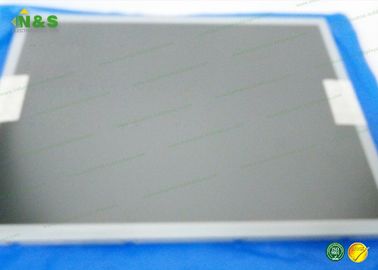

Products CHIMEI INNOLUX G150XGE-L05 Image
