7.0 Inch ASV / Normally Black hd lcd display LQ070M1SX01 , Clear / Hard coating Surface

7.0 Inch ASV / Normally Black hd lcd display LQ070M1SX01 , Clear / Hard coating Surface
7.0 Inch ASV / Normally Black hd lcd display LQ070M1SX01 , Clear / Hard coating Surface 7.0 Inch ASV / Normally Black hd lcd display LQ070M1SX01 , Clear / Hard coating Surface 7.0 Inch ASV / Normally Black hd lcd display LQ070M1SX01 , Clear / Hard coating Surface

Large Image :  7.0 Inch ASV / Normally Black hd lcd display LQ070M1SX01 , Clear / Hard coating Surface

Product Details:
Place of Origin: Japan
Brand Name: SHARP
Certification: ISO9001
Model Number: LQ070M1SX01
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 working days after payment confirmation
Payment Terms: T/T, Paypal, Western Union, MoneyGram
Supply Ability: 100 PCS / DAY

7.0 Inch ASV / Normally Black hd lcd display LQ070M1SX01 , Clear / Hard coating Surface

Description
Panel Model: LQ070M1SX01 Panel Type: A-Si TFT-LCD , Panel
Display Colors: 16.7M Response Time: 9/13 (Typ.)(Tr/Td)
Display Modes: ASV, Normally Black Lamp Type: 9S2P WLED
High Light:

sharp lcd display panels

,

sharp lcd screen

7.0 inch ASV, Normally Black, SHARP LQ070M1SX01 with Clear, Hard coating Surface

SHARP LQ070M1SX01 Backlight System:

Lamp Position : Edge light type
Lamp Type : WLED
Lamp Amount : 9S2P
Lamp Shape : 2 strings
Lamp Voltage : 26.1V (Typ.)
Lamp Current : 13.6/14.3/15.0mA (Min./Typ./Max.)


Descriptions for SHARP LQ070M1SX01 :

Panel Size : 7.0 inch
Dot Resolution : 1200(RGB)×1920 (WUXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 322 PPI
Aspect Ratio : 10:16 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.02625×0.07875 mm (H×V)
Pixel Pitch : 0.07875×0.07875 mm (H×V)
Weight : 41g (Typ.)
Surface : Clear, Hard coating
Active Area : 94.5×151.2 mm (H×V)
Outline Dimension : 99.7×159.85 mm (H×V)
Outline Depth : 1.725±0.2 mm
Landscape or Portrait : Portrait type
Touch Panel : Without


Why Choose N&S?


1) Enough industrail experience and involved main markets all over the world.
2) Dedicated and professional sales team will offer you 24 hours online and immediate service.
3) Precise and advanced equipments.
4) High quality and sensitivity.
5) Many kinds of products with all size.



What can we do for you:


Our LCD Panel inventory lines mostly covered small size from
1.5",2.0",2.2",2.5",3.0",3.5",4.0",4.2",4.3",4.7",5.0",5.5",5.7",6.0",6.4",7.0",8.0",10.1",10.4",12.1" etc.


What is the lead time of the products?


Samples in stock will be sent within 3 days after payment.


Payment methods?


T/T and Western union etc. The details of our payment terms is showing above.


How long is the warranty period?


Usually 1 Year without damaged by people actions. It depends on different products.


What is the products application?


Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.

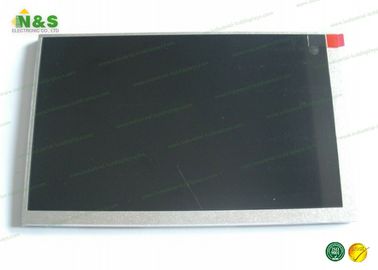

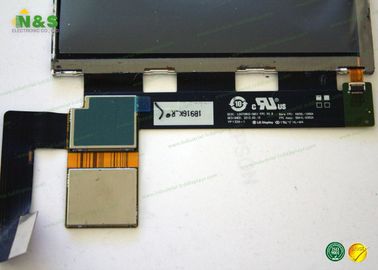

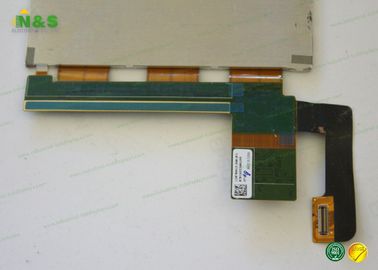

Details Pictures for SHARP LQ070M1SX01


7.0 Inch ASV / Normally Black hd lcd display LQ070M1SX01 , Clear / Hard coating Surface 0









7.0 Inch ASV / Normally Black hd lcd display LQ070M1SX01 , Clear / Hard coating Surface 1
