Product Details:
|
| Resolution: | 800(RGB)×480 , WVGA | Panel Model: | LQ065Y5DZ01 |
|---|---|---|---|
| Active Area: | 141.6×84.96 Mm | Outline: | 161.8×100.6×17.5 Mm |
| Contrast Ratio: | 1700:1 (Typ.) | Display Colors: | 16.7M (8-bit) |
| Response Time: | 15/5 (Typ.)(Tr/Td) | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
SHARP 6.5 inch LQ065Y5DZ01 ASV, Normally Black with hight Brightness
SHARP LQ065Y5DZ01 General Features
| Panel Brand : | SHARP |
| Panel Model : | LQ065Y5DZ01 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 6.5 inch |
| Resolution : | 800(RGB)×480 , WVGA |
| Display Mode : | ASV, Normally Black, Transmissive |
| Active Area : | 141.6×84.96 mm |
| Outline : | 161.8×100.6×17.5 mm |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Plastic Trays Inside
2. Layers of cartons
3. Fragile Sign on top.
4. Can be customized.
SHARP LQ065Y5DZ01 Mechanical Features
| Display Mode : | ASV, Normally Black, Transmissive |
| Brightness : | 675 cd/m² (Typ.) |
| Contrast Ratio : | 1700 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Response Time : | 15/5 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.290; Wy:0.320 |
| White Variation : | 1.18 (Typ.)(9 points) |
SHARP LQ065Y5DZ01 Backlight System
Lamp Position : Edge light type
Lamp Type : WLED
Interface Type : Included in panel signal interface
Lamp Driver Board : Embedded (LED Driver)
Lamp Driver Board : 7.0/13.5/18.0V (Min./Typ./Max.)
Lamp Driver Board : 400/800mA (Typ./Max.)

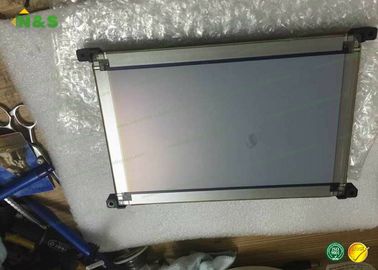

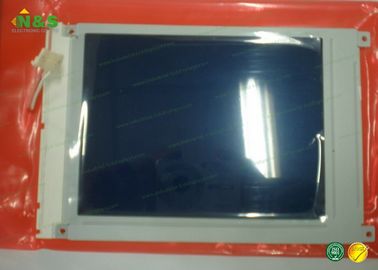

Details Pictures for Sharp LCD Panel LQ065Y5DZ01
