Product Details:
|
| Panel Model: | LQ043T3DG01 | Active Area: | 95.04×53.856 Mm |
|---|---|---|---|
| Contrast Ratio: | 900:1 | Response Time: | 8/21 (Typ.)(Tr/Td) |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
Antiglare, Hard coating LQ043T3DG01 4.3 inch for SHARP LCD panel
Features
1. Three year standard warranty
2.500:1 contrast ratio, and 250-nit brightness (LCD panel)
3. High quality panel with 140° x 130° viewing angle
4. Fully RoHS compliant
5. Multilingual on-screen display (OSD)
6. Optional front mount and rack mount bezels
7. LED Backlight
8. Mounting options including rear-mount and VESA mount
9. Resistive Touchscreen Technology
SHARP LQ043T3DG01 General Features
| Panel Brand : | SHARP |
| Panel Model : | LQ043T3DG01 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 4.3 inch |
| Resolution : | 480×272(RGB) , WQVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 95.04×53.856 mm |
| Outline : | 105.5×67.2 mm |
| Surface : | Antiglare, Hard coating (2H) |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 900:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
More Information For N&S electronic Co.,LTD:
1. Agent Brand:
* AUO/CPT/CMO/ /Innolux/ TianMa five brands tft lcd moulds in China from 2010, you can get the most competitive price for real products.
2. Quality to be ensure:
All the panels are 100% original and brand new, no fake panels exists, so from N&S you can enjoy the real panels directly from original factory; Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the packages have labels and serial number, you can check them.
3.Quickly delivery:
We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly and to avoid Value Added Tax in china for you, so from HKSEBO you can get more convenient delivery;
4.long-term partner:
* Products are sold to more than 20 countries, so from N&S you can get more stable supplying promise;
5. Super After-Sale service:
N&S will support original factory technology service before and after sale for all your project, you can send all the fack panel back and here return you a new panel;
6.the best TFT LCD solution:
*more tft lcd model detail information including,size, resolution, brightness, operating temperature or life time etc.

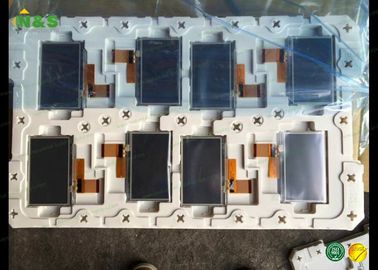

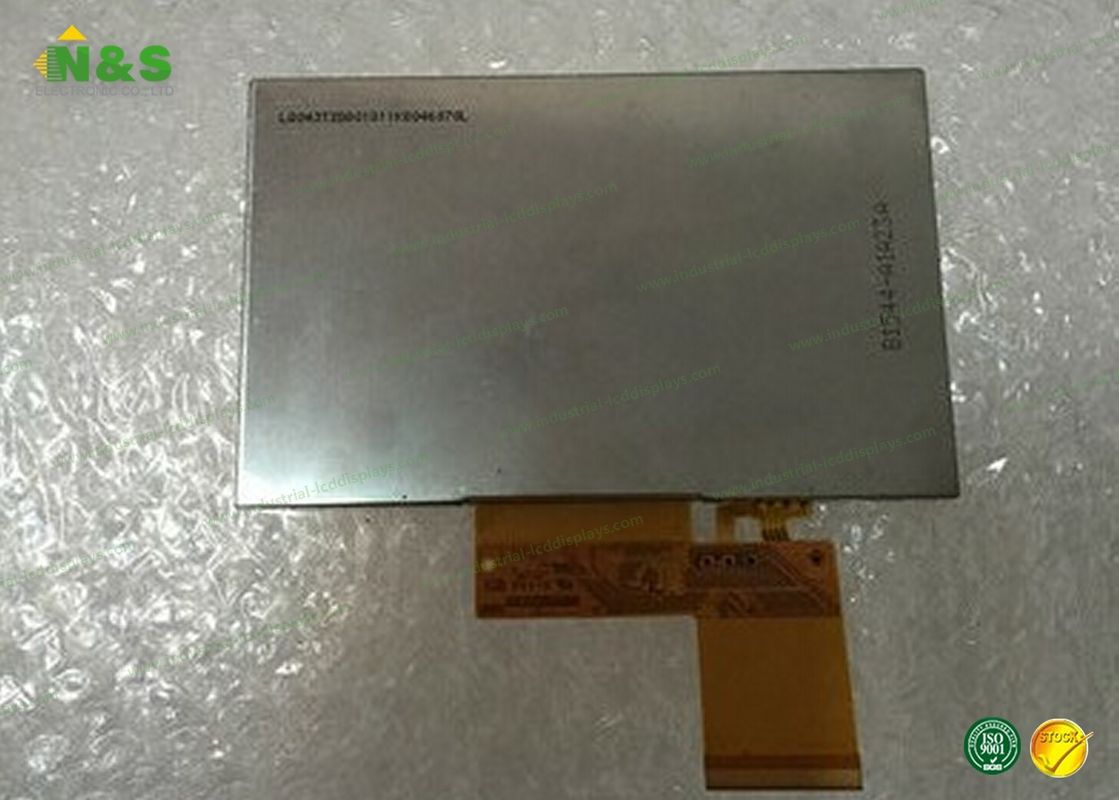

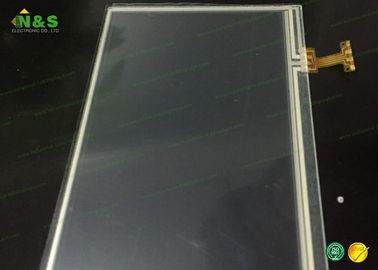

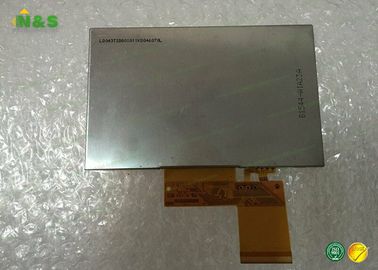

Picture show:
