Product Details:
|
| Panel Model: | LQ043T1DG28 | Panel Type: | A-Si TFT-LCD , Panel |
|---|---|---|---|
| Panel Size: | 4.3 Inch | Surface: | Antiglare |
| Frequency: | 60Hz | Lamp Type: | WLED |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
4.3 inch TN, Normally White SHARP LQ043T1DG28 Antiglare, Hard coating
General Features
| Panel Size : | 4.3 inch |
| Dot Resolution : | 480×272(RGB) (WQVGA) |
| Pixel Configuration : | RGB Horizontal Stripe |
| Pixel Density : | 128 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.198×0.066 mm (H×V) |
| Pixel Pitch : | 0.198×0.198 mm (H×V) |
| Weight : | 51g |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Plastic Trays Inside
2. Layers of cartons
3. Fragile Sign on top.
4. Can be customized.
Other Mechanical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 22/8 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/55/80 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.310; Wy:0.340 |

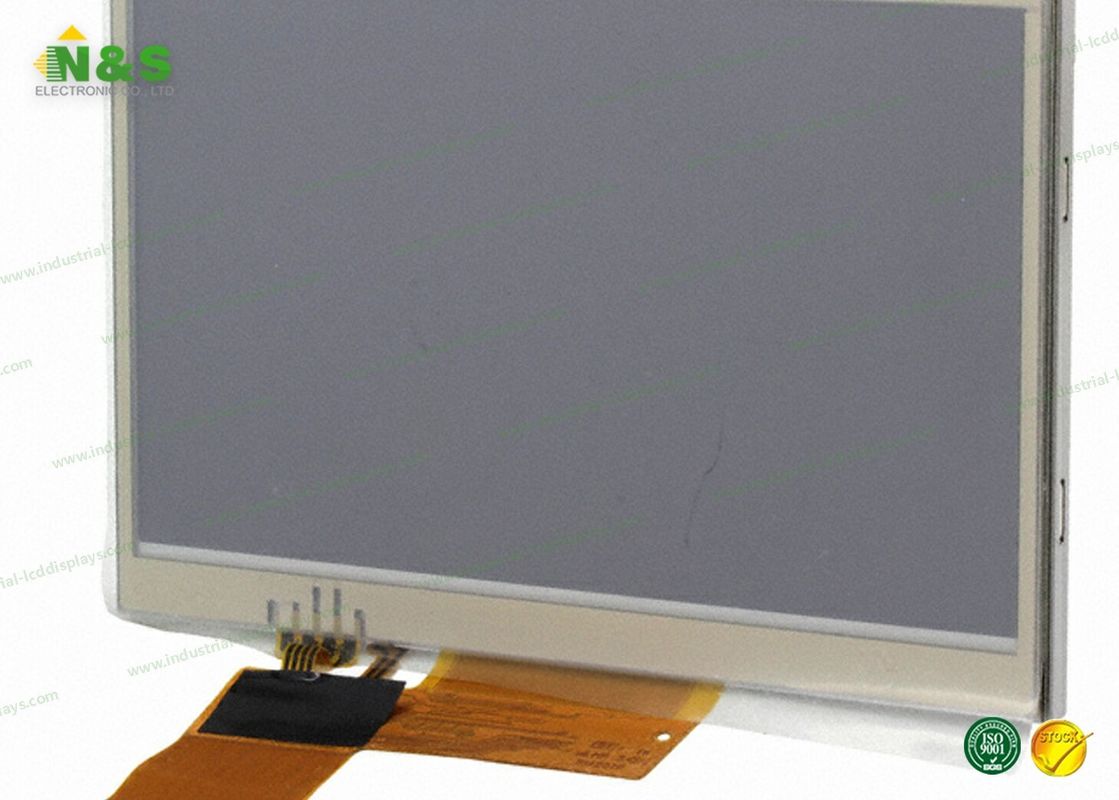

Details Pictures for Sharp LCD Panel LQ043T1DG28
