Product Details:
|
| Active Area: | 245.76×184.32 Mm | Response Time: | 6/17 (Typ.)(Tr/Td) |
|---|---|---|---|
| Aspect Ratio: | 4:3 (H:V) | Weight: | 700g (Max.) |
| Holes & Brackets: | Side Mounting Holes (4-M2) On Left, Right Bezel | Display Color: | 262K (6-bit) |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) | Pixel Pitch: | 0.240×0.240 Mm (H×V) |
| Highlight: | tft lcd display,innolux lcd screen |
||

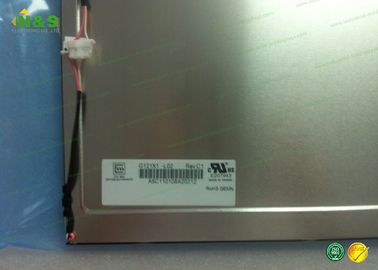

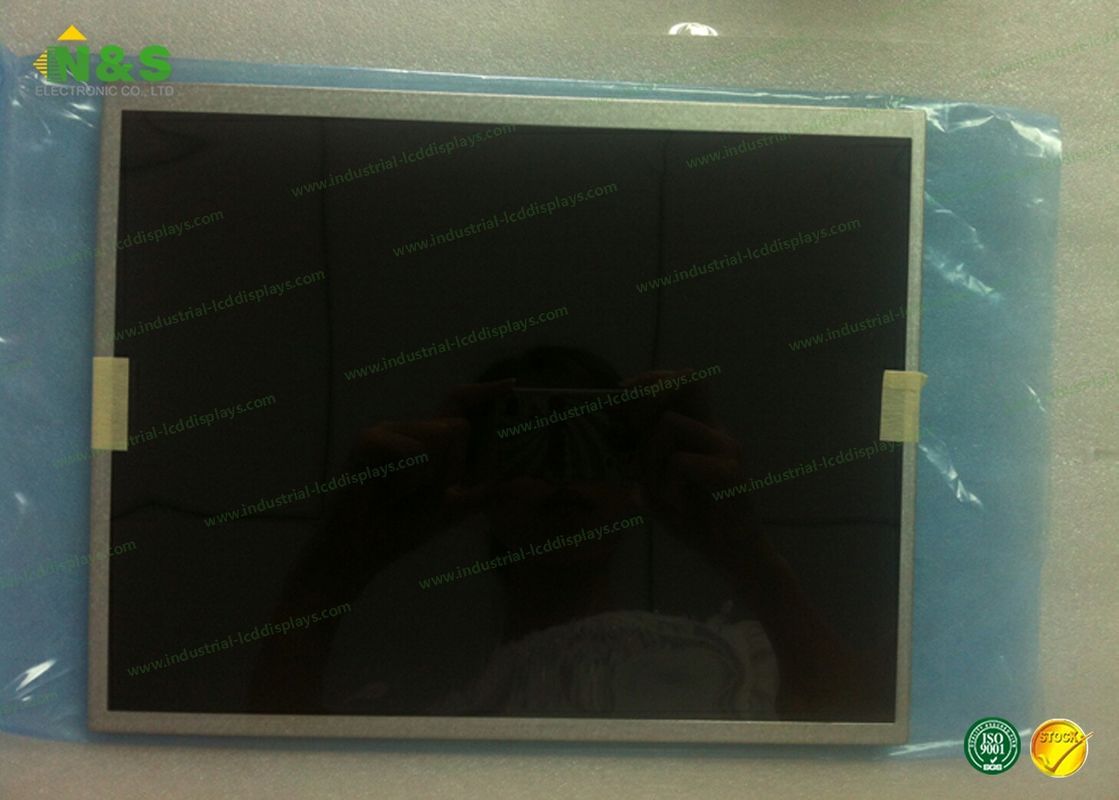

Transmissive tft lcd screen CMO G121X1- L02 with 1024*768 Resolution
Product Description
|
Panel Model |
G121X1-L02 |
|
Panel Type |
a-Si TFT-LCD , Panel |
|
Panel Size |
12.1 inch |
|
Resolution |
1024(RGB)×768 , XGA |
|
Display Mode |
TN, Normally White, Transmissive |
|
Surface |
Glare (Haze 0%), Hard coating (3H) |
|
Brightness |
500 cd/m² (Typ.) |
|
Contrast Ratio |
700:1 (Typ.) |
|
Display Colors |
262K (6-bit) |
|
Response Time |
6/17 (Typ.)(Tr/Td) |
|
Viewing Angle |
80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
|
Frequency |
60Hz |
Products Technical Specifications
|
Resolution : |
1024(RGB)×768 (XGA) |
|
Dot Pitch : |
0.080×0.240 mm (H×V) |
|
Pixel Pitch : |
0.240×0.240 mm (H×V) |
|
Active Area : |
245.76×184.32 mm (H×V) |
|
Bezel Area : |
249.0×187.5 mm (H×V) |
|
Outline Dimension : |
260.5×204 mm (H×V) |
|
Outline Depth : |
12.2±0.5 mm |
|
Brightness : |
500 cd/m² (Typ.) |
|
Contrast Ratio : |
700 : 1 (Typ.) (Transmissive) |
|
Display Color : |
262K (6-bit) |
|
Response Time : |
6/17 (Typ.)(Tr/Td) |
|
Viewing Angle : |
80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
|
White Variation : |
1.25/1.40 (Typ./Max.)(5 points) |
|
Operating Temperature : |
-30 ~ 80 °C |
|
Storage Temperature : |
-40 ~ 85 °C |
|
Lamp Voltage : |
500±50V |
|
Lamp Current : |
2.0/8.0/8.5mA (Min./Typ./Max.) |
|
Lamp Operating Frequency : |
45/80KHz (Min./Max.) |
|
Lamps Power Consumption : |
8.0W (Typ.) |
|
Input Voltage for Panel : |
3.3V (Typ.) |
|
Input Current for Panel : |
510mA (Typ.) |
|
Panel Power Consumption : |
1.68W (Typ.) |
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products.
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us,you can enjoy the real panels directly from original factory.
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them.
3.Quickly delivery:
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
4.long-term partner:
* Products are sold to more than 20 countries.
5.Super After-Sale service:
* One year warranty .
6. The best TFT LCD solution:
* More tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.

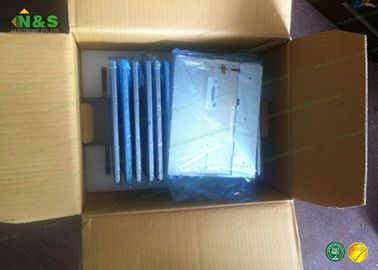

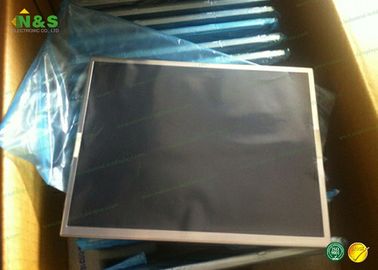

Packaging & Delivery
Products Details for CMO G121X1-L02
