Product Details:
|
| Resolution: | 640(RGB)×480 , VGA | Panel Size: | 10.4 Inch |
|---|---|---|---|
| Viewing Angle: | 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) | Signal Interface: | CMOS/TTL (1 Ch, 6-bit) , 31 Pins |
| Input Voltage: | 3.3/5.0V (Typ.)(VCC) | Contrast Ratio: | 1500 : 1 (Typ.) (Transmissive) |
| High Light: | lcd display panel,innolux lcd screen |
||
Super MVA 10.4'' CMO G104V1-T03 possess LCD High Contrast Ratio and Antiglare (Haze 25%),Hard coating (3H) Surface
CMO G104V1-T03 Mechanical Features
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 76 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.110×0.330 mm (H×V) |
| Pixel Pitch : | 0.330×0.330 mm (H×V) |
| Weight : | 395±50g |
| Active Area : | 211.2×158.4 mm (H×V) |
| Bezel Area : | 215.4×161.8 mm (H×V) |
| Outline Dimension : | 225.5×176.3 mm (H×V) |
| Outline Depth : | 7.81/9.34 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.
Electronics Feature&Backlight System
Vertical Frequency : 60Hz
Reverse Scan : Yes (180°)
Total Power Consumption : 8.94W (Typ.)
Time Controller (T-CON) : Embedded T-CON
Lamp Position :Edge light type (Top side)
Lamp Type : WLED
Lamp Life Time : 50K(Min.) (Hours)
Lamp Replaceable : Replaceable
Interface Type : Connector
Backlight Interface
| Brand | Model | Pin Pitch | Pins | Amount |
| E&T | 3823K-F05N-00L | 1.25 mm | 5 pins | 1 pcs |
Lamp Driver Board : Embedded (LED Driver)
Lamp Driver Board : 10.8/12.0/12.6V (Min./Typ./Max.)
Lamp Driver Board : 0.61A (Typ.)
Lamp Driver Board : 7.32W (Typ.)
Packaging & Delivery
Packaging Details:

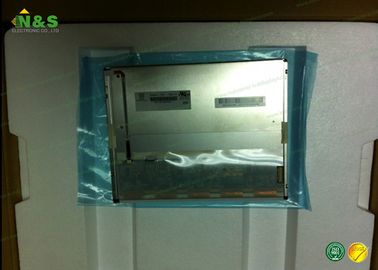

Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed

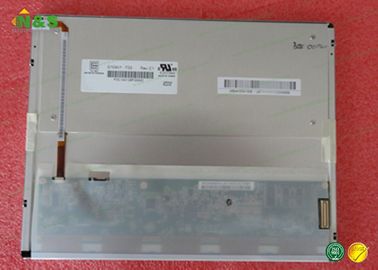

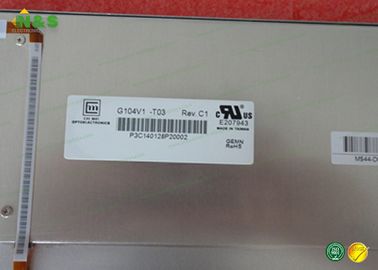

Product CMO G104V1-T03 Show
