Product Details:
|
| Outline: | 162.4×102×6.1 Mm | Brightness: | 280 Cd/m² (Typ.) |
|---|---|---|---|
| Contrast Ratio: | 350:1 (Typ.) | Display Colors: | 262K (6-bit) |
| Response Time: | 30 (Typ.)(Tr+Td) | Frequency: | 60Hz |
| High Light: | samsung lcd screen,samsung lcd display panel |
||
LMS700JF01 7.0 inch samsung flat screen monitor 153.6×90 mm 60Hz Frequency
SAMSUNG SMD LMS700JF01-001 General Features
| Panel Brand : | SAMSUNG SMD |
| Panel Model : | LMS700JF01-001 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 7.0 inch |
| Resolution : | 1024(RGB)×600 , WSVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 153.6×90 mm |
| Outline : | 162.4×102×6.1 mm |
| Brightness : | 280 cd/m² (Typ.) |
| Contrast Ratio : | 350:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 30 (Typ.)(Tr+Td) |
| Frequency : | 60Hz |
| Lamp Type : | 7S3P WLED |
| Signal Interface : | LVDS (1 ch, 6-bit) , 30 pins |
| Input Voltage : | 3.3V (Typ.) |
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Easy-to-install console, Open Frame chassis-mount display
• Slim dimensions enable better enclosure designs
• Multiple mounting options.
• All steel construction provides rugged frame for public use environments
• Two independent touch points
• Improved power efficiency and reduced consumption
• ISO9001 approvals.
SAMSUNG SMD LMS700JF01-001 Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 280 cd/m² (Typ.) |
| Contrast Ratio : | 350 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 30 (Typ.)(Tr+Td) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.322; Wy:0.340 |
| White Variation : | 1.13 (Typ.)(5 points) |
Packing & Delivery for our LCD Screen Panel Replacements:
1. Anti-static Bag Packing.
2. Anti-Shock Bubble Bag Packing
3. Foam and Hard Carton Packing
4. Picked up by forward and delivered by express services.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| AMS397GE61-1 | Samsung | 4.0" | 480×800 |
| AMS427GL41-0 | Samsung | 4.3" | 480×800 |
| AMS427GL45-0 | Samsung | 4.3" | 480×800 |
| AMS767KC04-1 | Samsung | 7.7" | 1280×800 |
| AMS395GB04 | Samsung | 4.0" | 360×640 |

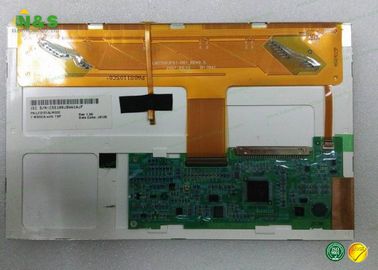

Details Pictures for Samsung LCD Panel LMS700JF01
