Product Details:
|
Panel Brand: | SAMSUNG | Panel Model: | LMS700KF06 |
---|---|---|---|
Panel Type: | A-Si TFT-LCD , Panel | Active Area: | 152.4×91.44 Mm |
Outline: | 163.2×104×3.6 Mm | Brightness: | 350 Cd/m² (Typ.) |
Response Time: | 25 (Typ.)(Tr+Td) | Viewing Angle: | 65/65/50/60 (Typ.)(CR≥10) (L/R/U/D) |
High Light: | samsung lcd panel replacement,samsung lcd display panel |
Samsung LCD Panel LMS700KF06 7.0 inch 152.4×91.44 mm Active Area 163.2×104×3.6 mm Outline
Special Features
Panel Brand : | SAMSUNG |
Panel Model : | LMS700KF06 |
Panel Type : | a-Si TFT-LCD , Panel |
Panel Size : | 7.0 inch |
Resolution : | 800×480(RGB) , WVGA |
Display Mode : | TN, Normally White, TMR |
Active Area : | 152.4×91.44 mm |
Outline : | 163.2×104×3.6 mm |
Brightness : | 350 cd/m² (Typ.) |
Contrast Ratio : | 400 : 1 (Typ.) |
Display Colors : | 16.7M (8-bit) |
Response Time : | 25 (Typ.)(Tr+Td) |
Viewing Angle : | 65/65/50/60 (Typ.)(CR≥10) (L/R/U/D) |
Frequency : | 60Hz |
Lamp Type : | 8S3P WLED |
Signal Interface : | Parallel RGB (1 ch, 8-bit) , 40 pins |
Input Voltage : | 3.3V (Typ.)(VCC) |
We Can Do for You:
1) One-to-one service with efficient& professional support;
2) Protection of your design and all your private information;
3) We could supply hard-to-findLCD screen replacements;
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: Wecontinuously strive to find ways of reducing our production costs, and passing the savings to you.
SAMSUNG LMS700KF06 Optical Features
Display Mode : | TN, Normally White, TMR |
Brightness : | 350 cd/m² (Typ.) |
Contrast Ratio : | 400 : 1 (Typ.) (Transmissive) |
Display Color : | 16.7M (8-bit) |
Response Time : | 25 (Typ.)(Tr+Td) |
Viewing Angle : | 65/65/50/60 (Typ.)(CR≥10) (L/R/U/D) |
Viewing Direction : | 6 o'clock |
White color Chromaticity : | Wx:0.316; Wy:0.335 |
White Variation : | 1.25/1.43 (Typ./Max.)(9 points) |
Sunlight Readable : | Sunlight Readable |
Packing & Delivery for our LCD Screen Panel Replacements:
1. Anti-static Bag Packing.
2. Anti-Shock Bubble Bag Packing
3. Foam and Hard Carton Packing
4. Picked up by forward and delivered by express services.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Panel Model | Brand | Size | Resolution |
AMS767KC04-1 | Samsung | 7.7" | 1280×800 |
AMS395GB04 | Samsung | 4.0" | 360×640 |
AMS410GC01-0 | Samsung | 4.1" | 480×800 |
AMS370FG | Samsung | 3.7" | 480×800 |
AMS465GS16-1 | Samsung | 4.7" | 720×1280 |
AMS427GL34-1 | Samsung | 4.3" | 480×800 |

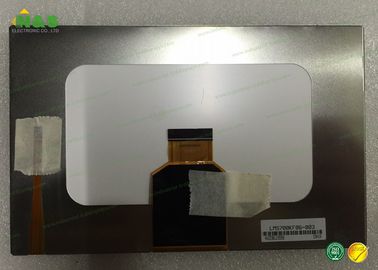

Details Pictures for Samsung LCD Panel LMS700KF06
