Product Details:
|
| Resolution: | 1024(RGB)×768 , XGA | Display Mode: | TN, Normally White, Transmissive |
|---|---|---|---|
| Active Area: | 304.1×228.1 Mm | Display Colors: | 16.2M (6-bit + FRC) , CIE1931 60% |
| Response Time: | 2/6 (Typ.)(Tr/Td) | Viewing Angle: | 75/75/75/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency: | 60Hz | Lamp Type: | 2 Pcs CCFL |
| High Light: | samsung lcd panel replacement,samsung lcd display panel |
||

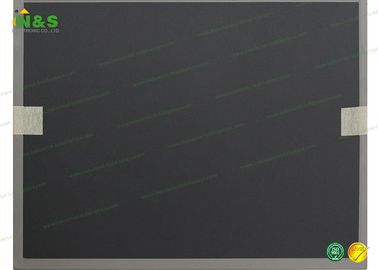

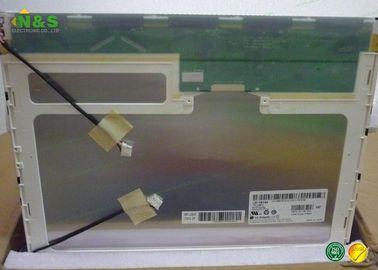

304.1×228.1 mm Active Area Samsung LCD Panel 326.5×253.5×12 mm Outline
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-yearexperience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AMS353FD09-0 | Samsung | 3.5" | 480×800 |
| AMS369FG06-0 | Samsung | 3.7" | 480×800 |
| LSC550FN19-W | Samsung | 55" | 3840×2160 |
| LSC550FJ13-W | Samsung | 55" | 3840×2160 |
| LSC490FJ02-W | Samsung | 49" | 3840×2160 |
| LSC490FN04-W | Samsung | 49" | 3840×2160 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
We Can Do for You:
1) One-to-one service with efficient& professional support;
2) Protection of your design and all your private information;
3) We could supply hard-to-findLCD screen replacements;
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: Wecontinuously strive to find ways of reducing our production costs, and passing the savings to you.
SAMSUNG LTM150XO-L01 General Features
| Panel Brand : | SAMSUNG |
| Panel Model : | LTM150XO-L01 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 15.0 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 304.1×228.1 mm |
| Outline : | 326.5×253.5×12 mm |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 700:1 (Typ.) |
| Display Colors : | 16.2M (6-bit + FRC) , CIE1931 60% |
| Response Time : | 2/6 (Typ.)(Tr/Td) |
| Viewing Angle : | 75/75/75/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL |
| Signal Interface : | LVDS (1 ch, 8-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
SAMSUNG LTM150XO-L01 Backlight System
| Lamp Position : | Edge light type (Top and Bottom) |
| Lamp Type : | CCFL |
| Lamp Amount : | 2 pcs |
| Lamp Shape : | Straight |
| Lamp Life Time : | 50K(Min.) (Hours) |
| Lamp Voltage : | 560V (Typ.) |
| Lamp Current : | 8.0mA (Typ.) |
| Interface Type : | Connector |
