Product Details:
|
| Display Mode: | LP101WSB-TLN1 | Active Area: | 222.72×125.28 Mm |
|---|---|---|---|
| Outline: | 245×146.5×3.6 Mm | Brightness: | 200 Cd/m² (Typ.) |
| Contrast Ratio: | 300:1 (Min.) | Display Colors: | 262K (6-bit) |
| Frequency: | 60Hz | Lamp Type: | WLED |
| High Light: | lg lcd display,lg replacement screen |
||

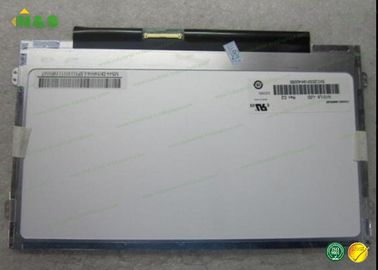

LG LCD Pane lLP101WSB-TLN1 10.1 inch 222.72×125.28 mm Active Area 245×146.5×3.6 mm Outline
LG Display LP101WSB-TLN1 General Features
| Panel Brand : | LG Display |
| Panel Model : | LP101WSB-TLN1 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 10.1 inch |
| Resolution : | 1024(RGB)×600 , WSVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 222.72×125.28 mm |
| Outline : | 245×146.5×3.6 mm |
| Shape Style : | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Surface : | Glare (Haze 0%) |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 300:1 (Min.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 16 (Typ.)(Tr+Td) |
| Viewing Angle : | 30/30/10/20 (Min.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED |
| Signal Interface : | LVDS (1 ch, 6-bit) , 40 pins |
| Input Voltage : | 3.3V (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LB060S01-FD01 | LG Display | 6.0" | 800×600 |
| LD470DUJ-SFE2 | LG Display | 47" | 1920×1080 |
| LC650EQK-FGK1 | LG Display | 65" | 3840×2160 |
| LH470M01-SH01 | LG Display | 4.7" | 540×960 |
| LH250Q01-TH03 | LG Display | 2.5" | 320×240 |
| LH320H02-SH03 | LG Display | 3.2" | 320×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
The reasons you choose us
1).More competitive price! As aprofessional LCD Distributor,we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee,100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time,so we could promise save much more money on the shipping cost and betterservice is offered!
5).Best sale-service!Professional team to service with you before sale, on sale & after service.
LG Display LP101WSB-TLN1 Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 300 : 1 (Min.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 16 (Typ.)(Tr+Td) |
| Viewing Angle : | 30/30/10/20 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.40/1.60 (Typ./Max.)(13 points) |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Plastic Trays Inside
2. Layers of cartons
3. Fragile Sign on top.
4. Can be customized.
