Product Details:
|
| Display Mode: | IPS, Normally Black, Transmissive | Active Area: | 153.6×90 Mm |
|---|---|---|---|
| Outline: | 162.8×102.9 Mm | Surface: | Hard Coating (3H) |
| Response Time: | 50 (Max.)(Tr+Td) | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency: | 60Hz | Lamp Type: | 5S4P WLED |
| High Light: | lg display panel,lg replacement screen |
||

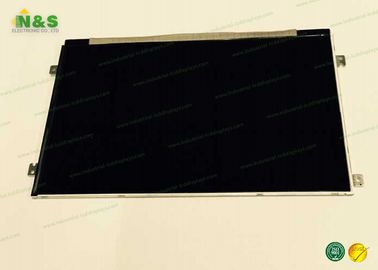

Hard coating Surface 7.0 inch lg lcd monitor 162.8×102.9 mm Outline

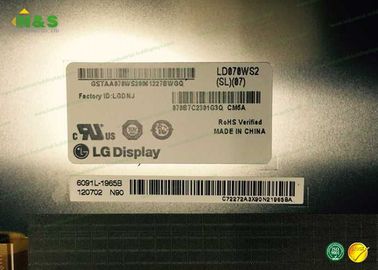

LG Display LD070WS2-SL07 General Features
| Panel Brand : | LG Display |
| Panel Model : | LD070WS2-SL07 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 7.0 inch |
| Resolution : | 1024(RGB)×600 , WSVGA |
| Display Mode : | IPS, Normally Black, Transmissive |
| Active Area : | 153.6×90 mm |
| Outline : | 162.8×102.9 mm |
| Surface : | Hard coating (3H) |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) |
| Response Time : | 50 (Max.)(Tr+Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 5S4P WLED |
| Signal Interface : | LVDS (1 ch, 8-bit) + SPI , 30 pins |
| Input Voltage : | 3.3V (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LB060S01-FD01 | LG Display | 6.0" | 800×600 |
| LD470DUJ-SFE2 | LG Display | 47" | 1920×1080 |
| LC650EQK-FGK1 | LG Display | 65" | 3840×2160 |
| LH470M01-SH01 | LG Display | 4.7" | 540×960 |
| LH250Q01-TH03 | LG Display | 2.5" | 320×240 |
| LH320H02-SH03 | LG Display | 3.2" | 320×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
LG Display LD070WS2-SL07 Optical Features
| Display Mode : | IPS, Normally Black, Transmissive |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (6-bit + Hi-FRC) |
| Response Time : | 50 (Max.)(Tr+Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.310; Wy:0.340 |
| White Variation : | 1.25/1.43 (Typ./Max.)(9 points) |
