Sharp LCD Panel LQ104V1DG83 10.4 inch 211.2×158.4 mm Active Area 246.5×179.4×34.7 mm Outline

Sharp LCD Panel LQ104V1DG83 10.4 inch 211.2×158.4 mm Active Area 246.5×179.4×34.7 mm Outline
Sharp LCD Panel LQ104V1DG83 10.4 inch 211.2×158.4 mm Active Area 246.5×179.4×34.7 mm Outline Sharp LCD Panel LQ104V1DG83 10.4 inch 211.2×158.4 mm Active Area 246.5×179.4×34.7 mm Outline

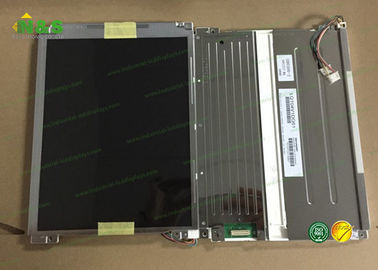

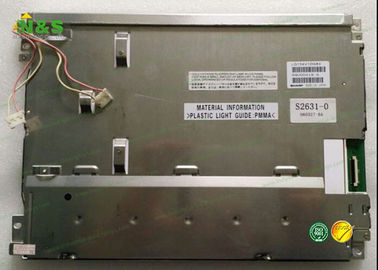

Large Image :  Sharp LCD Panel LQ104V1DG83 10.4 inch 211.2×158.4 mm Active Area 246.5×179.4×34.7 mm Outline

Product Details:
Place of Origin: Japan,Korea
Brand Name: Sharp LCD Panel
Certification: ISO9001
Model Number: LQ104V1DG83
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 100 PCS PER DAY

Sharp LCD Panel LQ104V1DG83 10.4 inch 211.2×158.4 mm Active Area 246.5×179.4×34.7 mm Outline

Description
Brightness: 350 Cd/m² (Typ.) Contrast Ratio: 300:1 (Typ.)
Display Colors: 262K (6-bit) , CIE1931 72% Response Time: 10/25 (Typ.)(Tr/Td)
Lamp Type: 2 Pcs CCFL Signal Interface: Parallel RGB (1 Ch, 6-bit) , 32 Pins
Nput Voltage: 3.3/5.0V (Typ.)(VCC) Panel Brand: SHARP
High Light:

sharp lcd display panels

,

sharp lcd screen

Sharp LCD Panel LQ104V1DG83 10.4 inch 211.2×158.4 mm Active Area 246.5×179.4×34.7 mm Outline



SHARP LQ104V1DG83 General Features

Panel Brand : SHARP
Panel Model : LQ104V1DG83
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 10.4 inch
Resolution : 640(RGB)×480 , VGA
Display Mode : TN, Normally White, Transmissive
Active Area : 211.2×158.4 mm
Outline : 246.5×179.4×34.7 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 350 cd/m² (Typ.)
Contrast Ratio : 300:1 (Typ.)
Display Colors : 262K (6-bit) , CIE1931 72%
Response Time : 10/25 (Typ.)(Tr/Td)
Viewing Angle : 70/70/40/70 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 2 pcs CCFL
Signal Interface : Parallel RGB (1 ch, 6-bit) , 32 pins
Input Voltage : 3.3/5.0V (Typ.)(VCC)



SHARP LQ104V1DG83 Mechanical Features

Panel Size : 10.4 inch
Dot Resolution : 640(RGB)×480 (VGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 76 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.110×0.330 mm (H×V)
Pixel Pitch : 0.330×0.330 mm (H×V)
Weight : 700g (Max.)
Surface : Antiglare, Hard coating (3H)
Active Area : 211.2×158.4 mm (H×V)
Bezel Area : 214.6×162.4 mm (H×V)
Outline Dimension : 246.5×179.4 mm (H×V)
Outline Depth : 34.7 (Max.) mm
Holes & Brackets : Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LM089HB1T04 SHARP 8.9" 640×240
LM077VS1T01 SHARP 7.7" 640×480
LM64C081 SHARP 9.4" 640×480
LM64C352 SHARP 10.4" 640×480
LM80C032 SHARP 10.4" 800×600

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk





Our Service

1. Quality ensurance

100% original new and A grade,

You can enjoy the real panels directly from original factory;

2. Fast reply:

Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.

3. Delivery ensurance:

Large Stock System, We have our own warehouses in Shenzhen and HongKong, with comprehensive supply lines.

4. After-Sale Service:

Professional support team to provide effective service, we are young and full of passion!

5. Professional acknowledgement of lcd panels industry to provide customers with effective advise.

We have been in original lcd panels industry for more than 6 years and know the main brands' lcd panel price system very well. What's more, we have our own engineer team to provide our customers guideline for choosing panels for their new projects.

6. Competitive quotation:

We are insistent in lcd panel industry. Our big customers network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.



Packing & Delivery for our LCD Screen Panel Replacements

1. Anti-static Bag Packing.

2. Anti-Shock Bubble Bag Packing

3. Foam and Hard Carton Packing

4. Picked up by forward and delivered by express services.
