Product Details:
|
| Panel Model: | LQ080V3DG01 Compatible Model | Panel Type: | A-Si TFT-LCD , Panel |
|---|---|---|---|
| Display Modes: | TN, Normally White, Transmissive | Outline: | 183×141 Mm |
| Brightness: | 380 Cd/m² (Typ.) | Display Colors: | 262K (6-bit) |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
Antiglare , Antireflection Sharp LCD Panel / lcd display screen 162.24×121.68 mmPanel
SHARP LQ080V3DG01 Backlight System:
| Lamp Position : | Edge light type |
| Lamp Type : | CCFL |
| Lamp Amount : | 1 pcs |
| Lamp Shape : | U shape |
| Lamp Life Time : | 10K(Min.) (Hours) |
| Lamp Voltage : | 770/860/950V (Min./Typ./Max.) |
| Lamp Current : | 4.0/6.0/7.0mA (Min./Typ./Max.) |
| Lamp Operating Frequency : | 35/70KHz (Min./Max.) |
| Lamp Startup Voltage : | 2000/2050V (Max.)(Ta=+25/-10℃) |
| Interface Type : | Connector |
Descriptions for SHARP LQ080V3DG01:
| Panel Size : | 8.0 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 100 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0845×0.2535 mm (H×V) |
| Pixel Pitch : | 0.2535×0.2535 mm (H×V) |
| Weight : | 390±20g |
| Surface : | Antiglare, Antireflection |
| Active Area : | 162.24×121.68 mm (H×V) |
| Outline Dimension : | 183×141 mm (H×V) |
| Outline Depth : | 14.0 (Typ.) mm |
| Holes & Brackets : | Rear mounting holes (4-Ф2.2) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Why Choose N&S?
1) Enough industrail experience and involved main markets all over the world.
2) Dedicated and professional sales team will offer you 24 hours online and immediate service.
3) Precise and advanced equipments.
4) High quality and sensitivity.
5) Many kinds of products with all size.
What can we do for you:
Our LCD Panel inventory lines mostly covered small size from
1.5",2.0",2.2",2.5",3.0",3.5",4.0",4.2",4.3",4.7",5.0",5.5",5.7",6.0",6.4",7.0",8.0",10.1",10.4",12.1" etc.
What is the lead time of the products?
Samples in stock will be sent within 3 days after payment.
Payment methods?
T/T and Western union etc. The details of our payment terms is showing above.
How long is the warranty period?
Usually 1 Year without damaged by people actions. It depends on different products.
What is the products application?
Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.

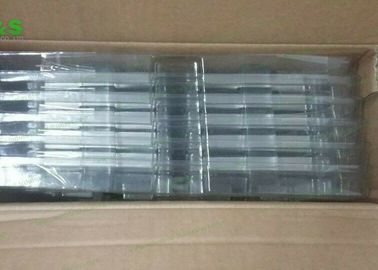

Details Pictures for SHARP LQ080V3DG01:
