Product Details:
|
| Panel Size: | 17.3 Inch | Surface: | Antiglare, Hard Coating (3H) |
|---|---|---|---|
| Brightness: | 300 Cd/m² (Typ.) | Panel Type: | A-Si TFT-LCD , Panel |
| Panel Model: | LP173WF3-SLB1 | Shape Style: | Wedge |
| High Light: | lg display panel,lg replacement screen |
||
Normally Black 17.3 inch LG LCD Panel , touch screen Anti glare lcd screen
Specification of 17.3 inch LP173WF3-SLB1 LG LCD:
| Panel Brand : | LG Display |
| Panel Model : | LP173WF3-SLB1 1 Compatible model |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 17.3 inch |
| Resolution : | 1920(RGB)×1080 , FHD |
| Display Mode : | S-IPS, Normally Black, Transmissive |
| Active Area : | 381.888×214.812 mm |
| Outline : | 398.1×234.3×7.2 mm |
| Shape Style : | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 600:1 (Min.) |
| Display Colors : | 1.07B (10-bit) , CIE1931 100% |
| Response Time : | 35 (Typ.)(Tr+Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
Related Products:
Industrial TFT LCD (1.44", 1.77", 2", 2.2",2.4", 2.8", 3",3.2", 3.5", 4.3", 5", 5.5", 5.7", 6.2", 7", 8", 9", 9.7".10.1", 10.2", 10.4", , etc.
Our Advantages for LCD panel:
| 1 | FOG automatical device can ensure the capacity of 1000,000 per month. |
| 2 | MOQ can be 100pcs, lead time of standard products is 20 days. |
| 3 | Reliability test and full examination to ensure the high quality of the display. |
| 4 | OEM&ODM are provided for TFT/TN LCD/Plastic Moulding. |
| 5 | Strictly ISO quality management system. |
| 6 | Mature and Professional R&D and after service. |
| 7 | Various cooperation experience with big brands |
Company Strength:
Optical Features:
| Panel Size : | 17.3 inch |
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 127 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0663×0.1989 mm (H×V) |
| Pixel Pitch : | 0.1989×0.1989 mm (H×V) |
| Weight : | 830g (Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 381.888×214.812 mm (H×V) |
| Bezel Area : | 386.70×219.75 mm (H×V) |
| Outline Dimension : | 398.1×234.3 mm (H×V) |
| Outline Depth : | 7.2 (Max.) mm |
| Shape Style : | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Holes & Brackets : | Side mounting holes (8-M2) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |

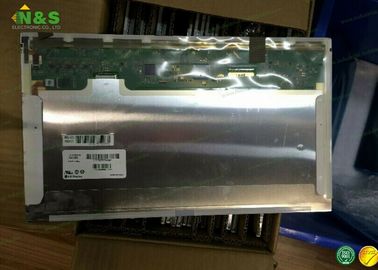

Details Pictures for the LP173WF3-SLB1 Screen Display Panel:
