Hard Coating Sharp LCD Display Panels , 3.7 Inch Color TFT LCD Display 480 × 640 LS037V7DW03

Hard Coating Sharp LCD Display Panels , 3.7 Inch Color TFT LCD Display 480 × 640 LS037V7DW03
Hard Coating Sharp LCD Display Panels , 3.7 Inch Color TFT LCD Display 480 × 640 LS037V7DW03 Hard Coating Sharp LCD Display Panels , 3.7 Inch Color TFT LCD Display 480 × 640 LS037V7DW03

Large Image :  Hard Coating Sharp LCD Display Panels , 3.7 Inch Color TFT LCD Display 480 × 640 LS037V7DW03

Product Details:
Place of Origin: Japan
Brand Name: SHARP
Certification: ISO9001
Model Number: LS037V7DW03
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 working days after payment confirmation
Payment Terms: T/T, Paypal, Western Union, MoneyGram
Supply Ability: 100 PCS / DAY

Hard Coating Sharp LCD Display Panels , 3.7 Inch Color TFT LCD Display 480 × 640 LS037V7DW03

Description
Panel Model: LS037V7DW03 2 Compatible Model Panel Type: CG-Silicon
Resolution: 480(RGB)×640 , VGA Display Mode: ASV, Normally Black, Transflective
Input Voltage: 3.3V (Typ.)(VSHD)
High Light:

sharp lcd screen

,

sharp lcd flat screen

Hard Coating Sharp LCD Display Panels , 3.7 Inch Color TFT LCD Display 480 × 640 LS037V7DW03

Descriptions for SHARP LS037V7DD06S:
<

Pixel Configuration : RGB Vertical Stripe
Pixel Density : 217 PPI
Aspect Ratio : 3:4 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.039×0.117 mm (H×V)
Pixel Pitch : 0.117×0.117 mm (H×V)
Weight : 38g (Typ.)
Active Area : 56.16×74.88 mm (H×V)
Bezel Area : 59.8×78.5 mm (H×V)
Outline Dimension : 65×89.2 mm (H×V)
Outline Depth : 3.6 (Typ.) mm
Landscape or Portrait : Portrait type
Touch Panel : Without



Competitive Advantage:

1    We are a leading manufacturer of LCD products for more than 10 years.
2    We got the ISO9001 quality management system certification.
3    We have our own R&D team, and accept OEM order as per customer’s design.
4    We are the 5-years four star member of Globalsources and the Three year Gold supplier in Alibaba.
5    Our main material LCD panels all are directly imported from Samsung and LG in Korea.
6    All products win the certificate of CE,CCC,FCC and RoHS.
7    Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 5 days.
8    3-years warranty is offered.
.
We will test them strictly before shipping.We will ship it in 1-3 working days after your paying.
We only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be
different for different countries.

Technical parameters for SHARP LS037V7DD06S:


1. Panel Model : LS037V7DW03 2 Compatible model
2. Panel Size : 3.7 inch
3. Resolution : 480(RGB)×640 , VGA
4. Display Mode : ASV, Normally Black, Transflective
5. Active Area : 56.16×74.88 mm
6. Outline : 65×89.2 mm
7. Surface :
8. Brightness : 200 cd/m² (Typ.)
9. Contrast Ratio : 200:1 (Typ.)(Transmissive) 2:1 (Typ.)(Reflective)
10. Display Colors : 262K (6-bit) , CIE1931 35%
11. Response Time : 15/20 (Typ.)(Tr/Td)
12. Viewing Angle : 80/80/80/80 (Typ.)(CR≥5) (L/R/U/D)
13. Lamp Type : 7S1P WLED Without Driver
14. Signal Interface : Parallel RGB (1 ch, 6-bit) , 51 pins


SHARP LS037V7DD06S Optical Features

Sunlight Readable : Sunlight Readable

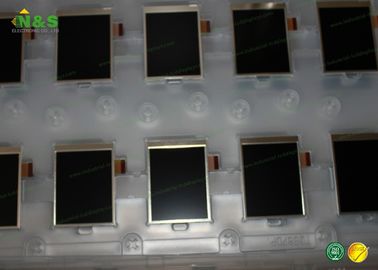

Photos about SHARP LS037V7DD06S :


Hard Coating Sharp LCD Display Panels , 3.7 Inch Color TFT LCD Display 480 × 640 LS037V7DW03 0Hard Coating Sharp LCD Display Panels , 3.7 Inch Color TFT LCD Display 480 × 640 LS037V7DW03 1
