Product Details:
|
| Operating Temp.: | -30 ~ 80 °C | Storage Temp.: | -40 ~ 85 °C |
|---|---|---|---|
| Luminance: | 1100 Cd/m² (Typ.) | Screen Size: | 10.4 Inch |
| Contrast Ratio: | 400 : 1 (Typ.) (TM) | Signal Type: | LVDS (1 Ch, 6-bit) |
| Work Mode: | TN, Normally White, Transmissive | Touchscreen: | Without |
| High Light: | 10.4" Sharp LCD Screen,LQ104S1LG75,LQ104S1LG75 Sharp Screen |
||

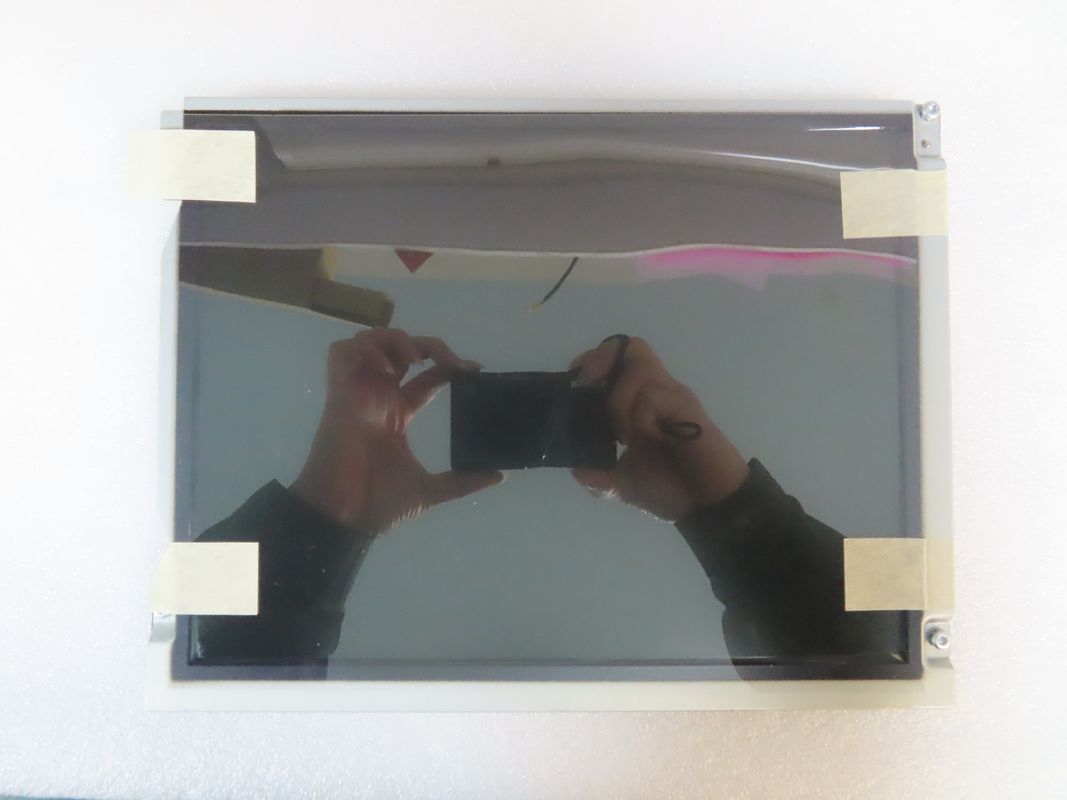

LQ104S1LG75 800×600 10.4" Sharp LCD Screen Without Touch
Description of Sharp LCD Panel
LQ104S1LG75 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 242(W)×185(H) mm. As a TN, Normally White, Transmissive LCM product, LQ104S1LG75 can provides 1100 cd/m² display brightness 400:1 transimissive contrast ratio, 60/60/60/50 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 25 (Typ.)(Tr+Td) ms.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
| LS024Q8UC92 | SHARP | 2.4" | 240×320 |
| LK235D3HA0S | SHARP | 23.6" | 1920×1080 |
| LS055D1SX04 | SHARP | 5.5" | 2160×3840 |
Application Of Sharp LCD Panel LQ104S1LG75
1. Military Display
2. Tablet PC
3. Industrial Display
4. Commercial Display
After-sale Services:
1) warranty for 1 year, 7 days return for the non-working items, except broken, crashed cargo (Buyer pay for return shipping fee).
2) Please make sure the item is compatible for your model before ordering. No return for incompatible issues.
3) When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accepting the goods .Please contact me and sent photo of product to me as soon as possible .I will complaint the delivery company.
We ensure offer great products, services and the most favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.
