Product Details:
|
| Manufacturer: | SHARP | Model Name: | LQ201U1LW32 |
|---|---|---|---|
| Screen Size: | 20.1 Inch | Max. Ratings: | Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Luminance: | 260 Cd/m² (Typ.) | Backlight: | WLED , 50K Hours , With LED Driver |
| Active Area(mm): | 408 × 306 (H×V) | Signal Type: | LVDS (2 Ch, 8-bit) , 30 Pins Connector |
| Screen Type: | LCM, A-Si TFT-LCD | Work Mode: | VA, Normally Black, Transmissive |
| High Light: | LQ201U1LW32,LQ201U1LW32 Sharp Lcd Screen,LQ201U1LW32 Sharp Screen |
||

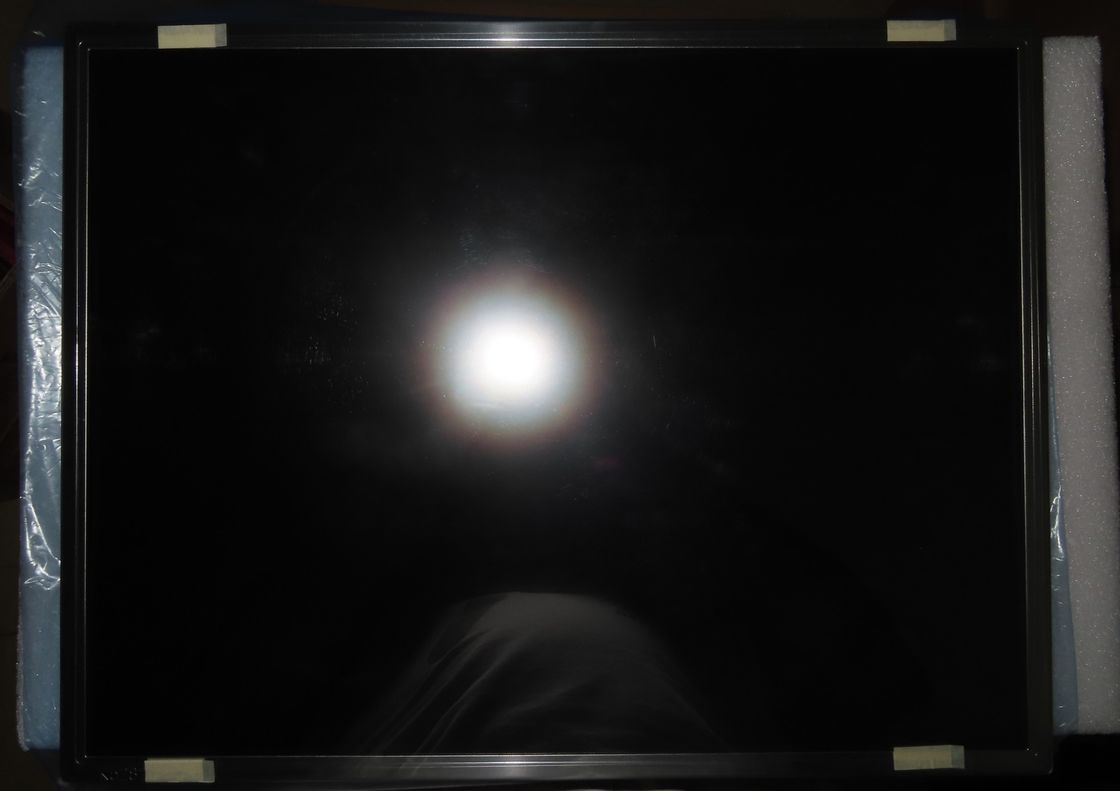

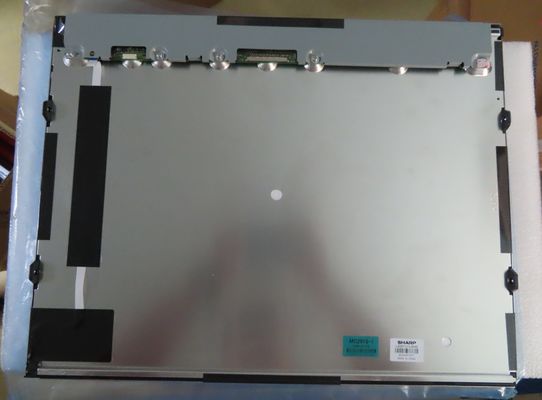

Medical Imaging 20.1" LCM LQ201U1LW32 Sharp Lcd Screen
Description Of Sharp LCD Panel
LQ201U1LW32 supports display 1600(RGB)×1200 (UXGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 408(W)×306(H) mm, outline size of 436(W)×335(H)×20.4(D) mm, viewing area size of 413.2(W)×311.2(H) mm, with surface treament of Antiglare, Hard coating (2H), net weight of 2.40Kgs (Max.)
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information
| LS050K3SX06A | SHARP | 5.0" |
| LK460D3HA10 | SHARP | 46" |
| LK315T3HB874 | SHARP | 31.5" |
| LK315T3HB873 | SHARP | 31.5" |
| LQ0DZC0156 | SHARP | 40" |
| LX080M1BB01 | SHARP | 8.0" |
| LS050K3SX09 | SHARP | 5.0" |
| LQ315D1EG02 | SHARP | 31.5" |
| JE0DZ1C0093 | SHARP | 60" |
| LK460D3FZ10 | SHARP | 46" |
| LQ0DZC0128 | SHARP | 31.5" |
| LQ0DASA469 | SHARP | 4.7" |
| LQ133M1JW08A | SHARP | 13.3" |
| LK315T3HC1K | SHARP | 31.5" |
| LQ055T3SX04 | SHARP | 5.5" |
Application Of Sharp LCD Panel LQ201U1LW32
1. GPS navigation systemGPS
2. Medical System
3. SMART home system
4. ecurity Monitoring System
5. Education system
