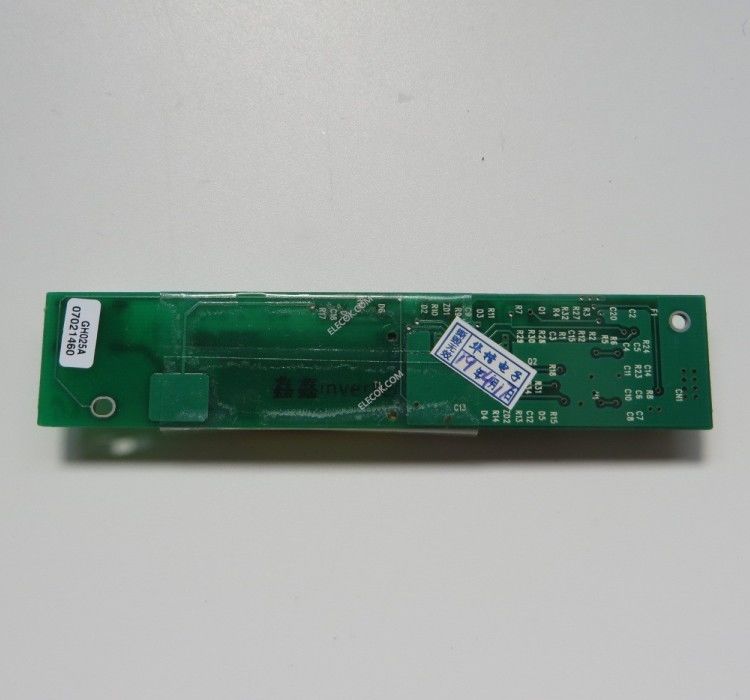

Product Details:
|
| Operation Temperature: | -20 ~ 75 ℃ | Storage Temperature: | -20 ~ 85℃ |
|---|---|---|---|
| Operation Humidity: | 90RH％ | Storage Humidity: | 90RH％ |
| D/C: | 18+ | Quality: | New And Original |
| Application: | Electronic Component | ||
| High Light: | lcd ccfl inverter,ccfl electronic inverter |
||
1.Features
Two lamps output supply
5.8mA-output current
Voltage range:10.8-13.2
Dimming voltage range 5Vto0V
2.Electronic characteristic
|
Item |
Symbol |
Unit |
Specification | Condition | |||
| min | typ | max | Vin(V) | RL(kΩ) | |||
| Input Voltage | Vin | V | 10.8 | 12.0 | 13.2 | - | - |
| Input Current | Iin | mA | - | - | 1000 | 10.8 | 110 |
|
Output Current |
Iout(Max Dimming) |
mArms |
5.5 | 5.8 | 6.5 | 12.0 | 110 |
| Iout(Min Dimming) | 2.0 | - | 3.0 | 12.0 | 110 | ||
|
Output Voltage |
Vopen |
V |
1100 | - | 1600 | 12.0 | - |
| Vlamp | 600 | 650 | 750 | 12.0 | 110 | ||
| Frequency | Freq | KHZ | 45 | - | 55 | 12.0 | 110 |
| Efficiency | η | % | - | 80 | - | 12.0 | 110 |
3.Other Specifications
| Dimming Function | PWM | |
| Open Circuit Protection | Yes | |
| Operation Temperature | -20 ~ 75 | ℃ |
| Storage Temperature | -20 ~ 85 | ℃ |
| Operation Humidity | 90 | RH％ |
| Storage Humidity | 90 | RH％ |

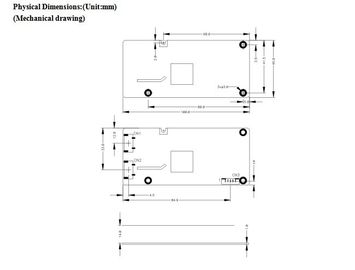

4.Connector
| Number | Part number | Model/Material | Quantity | Remarks |
| 1 | PCB | Composite(FR-4) | 1 | UL94V-0 t=1.6mm |
| 2 | Input connector CN3 | JS-1125-06 | 1 |
compatible JST PN: PHR-6 |
| 3 |
Output connector CN1, CN2 |
JS-2010-02/8.0mm | 2 |
Compatible JST PN: BHR-02(8.0)VS-1N |
| Terminal Number | Symbol | Rated Voltage | Remarks |
| 1,2, | GND | POWER GROUND | |
| 3 | DIMMING | Max. Current Limit (5V=6.5mA ; 0V=3.0mA) | |
| 4 | ON/OFF | ON:2.8~5V OFF:0~1V | |
| 5,6 | VIN | 10.8~13.2 V |
Output side CN1,CN2
| Terminal Number | Symbol | Rated Voltage | Remarks |
| 1 | HV | High voltage output | |
| 2 | LV | Return |
