Product Details:
|
| Panel Model: | G213QAN01.0 | Panel Brand: | AUO |
|---|---|---|---|
| Descrition: | 2048×1536 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 433.152×324.864 Mm | Outline: | 457×350×22.8 Mm |
| High Light: | industrial lcd screen,industrial lcd panel |
||
G213QAN01.0 AUO a-Si TFT-LCD ,21.3 inch, 2048×1536 for 60Hz
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
| Panel Model | G213QAN01.0 |
|---|---|
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,21.3 inch, 2048×1536 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 60 °C |
| Storage Temperature | -20 ~ 60 °C |
After-sale Services:
1)warranty for 1 year, 7 days return for the non-working items, except broken, crashed cargo (Buyer pay for return shipping fee).
2)Please make sure the item is compatible for your model before ordering. No return for incompatible issues.
3)When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accepting the goods .Please contact me and sent photo of product to me as soon as possible .I will complaint the delivery company.
| Dot Resolution | 2048(RGB)×1536 (QXGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 120 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0705×0.2115 mm (H×V) |
| Pixel Pitch | 0.2115×0.2115 mm (H×V) |
| Weight | 3.20Kgs (Typ.) |
| Surface | Antiglare |
| Active Area | 433.152×324.864 mm (H×V) |
| Bezel Area | 438.2×330.0 mm (H×V) |
| Outline Dimension | 457×350 mm (H×V) |
| Outline Depth | 22.3±0.5 mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
We can do for You:
100% original new Hard Disk for you.
2．Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3．Delivery Guarantee:
Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.
4．After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of hard disks to provide customers with effective advice.
We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.
6. Competitive quotation:
Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
| Display Mode | AHVA, Normally Black, Transmissive |
|---|---|
| Brightness | 800 cd/m² (Typ.) |
| Contrast Ratio | 1400 : 1 (Typ.) (Transmissive) |
| Display Color | 1.07B (10-bit) |
| Color Gamut | 74% NTSC (CIE1931) |
| Response Time | 13/12 (Typ.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.299; Wy:0.315 |
| White Variation | 1.25 (Max.)(9 points) |
| Sunlight Readable | Y |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| T320HVN02.1 CELL | AUO | 31.5" | 1920×1080 |
| M270DAN01.1 CELL | AUO | 27.0" | 2560×1440 |
| T500QVN03.3 CELL | AUO | 50" | 3840×2160 |
| T500QVN03.0 CELL | AUO | 50" | 3840×2160 |
| H497DAN02.1 | AUO | 5.0" | 1080×1920 |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information

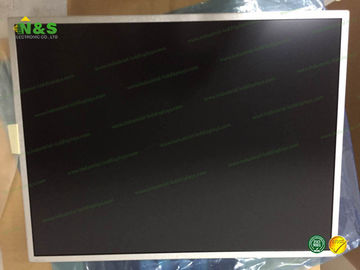

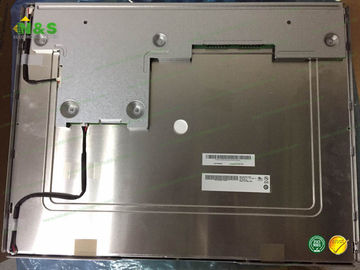

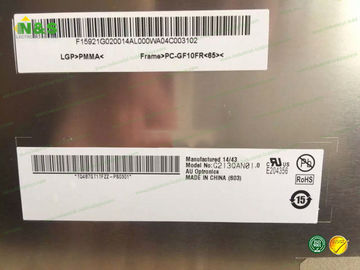

G213QAN01.0 pictures
