Product Details:
|
| Model Name: | AA150XW02 | Manufacturer: | Mitsubishi |
|---|---|---|---|
| Screen Size: | 15.0 Inch | Pixel Number: | 1024(RGB)×768 (XGA) |
| Active Area(mm): | 304.128 × 228.096 (H×V) | Bezel Area(mm): | 308.1 × 232.1 (H×V) |
| High Light: | industrial touch screen display,industrial lcd screen |
||
Mitsubishi AA150XW02 General Features for Industria l Application
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.
| Panel Model | AA150XW02 |
|---|---|
| Panel Brand | Mitsubishi |
| Descrition | a-Si TFT-LCD ,15.0 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -30 ~ 80 °C |
| Storage Temperature | -30 ~ 80 °C |
| Remarks | without NCM |
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.
Return and Refund:
| Dot Resolution | 1024(RGB)×768 (XGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 85 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.099×0.297 mm (H×V) |
| Pixel Pitch | 0.297×0.297 mm (H×V) |
| Weight | 1.05Kgs (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 304.1×228.1 mm (H×V) |
| Bezel Area | 308.1×232.1 mm (H×V) |
| Outline Dimension | 326×255 mm (H×V) |
| Outline Depth | 10.5±0.5 mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Packing& Shipping:
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us.
| Display Mode | IPS, Normally Black, Transmissive |
|---|---|
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Display Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Gamut | 72% NTSC (CIE1931) |
| Response Time | 12/12 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.43 (Max.)(5 points) |
| Sunlight Readable | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AA175TA01 | Mitsubishi | 17.5" | 1280×768 |
| AA151XB12 | Mitsubishi | 15.1" | 1024×768 |
| AA151XB11 | Mitsubishi | 15.1" | 1024×768 |
| AA151XB01 | Mitsubishi | 15.1" | 1024×768 |
| AA151XA02 | Mitsubishi | 15.1" | 1024×768 |
| AA151XA01 | Mitsubishi | 15.1" | 1024×768 |
| AA150XR01-G1 | Mitsubishi | 15.0" | 1024×768 |
| AA150XN12 | Mitsubishi | 15.0" | 1024×768 |
We also have other industrial LCD panels, pls contact to us for the further information

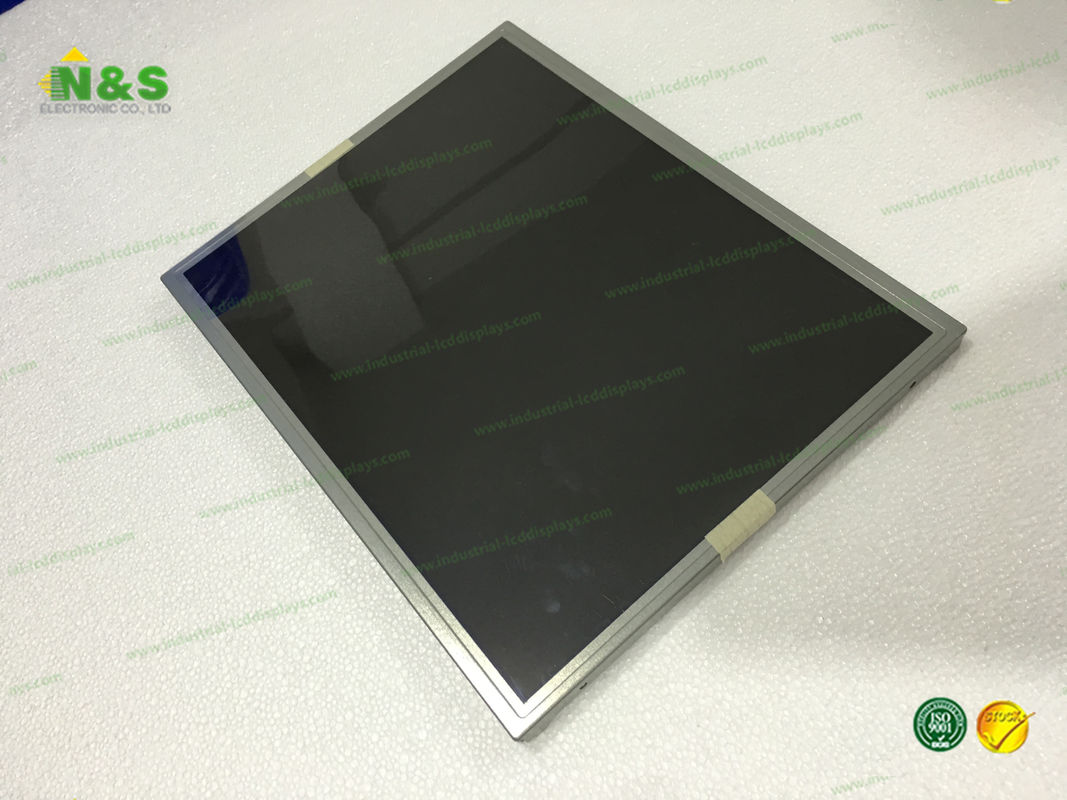

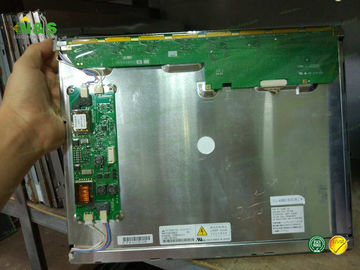

AA150XW02 Pictures
