Product Details:
|
| Panel Model: | LTI216XM01 | Diagonal Size: | 21.6 Inch |
|---|---|---|---|
| Brand: | SAMSUNG | Touch Panel: | Without |
| Type: | A-Si TFT-LCD | Power Supply: | 12.0V |
| High Light: | samsung lcd screen,samsung lcd display panel |
||

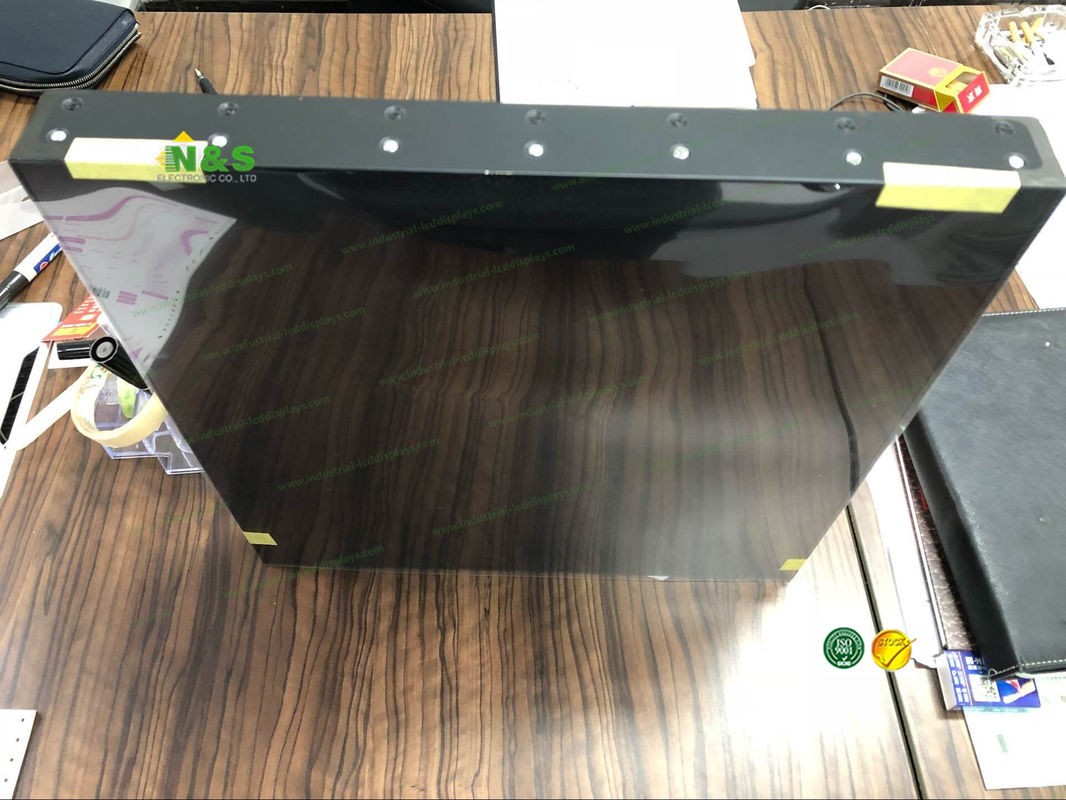

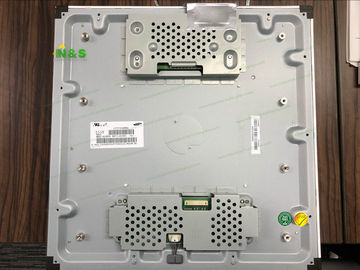

Normally Black LTI216XM01 Samsung 21.6 inch LCM 960×960 for Video wall
LTI216XM01 Information
| Panel Model | LTI216XM01 |
|---|---|
| Panel Brand | SAMSUNG |
| Descrition | a-Si TFT-LCD ,21.6 inch, 960×960 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | S-PVA, Normally Black, Transmissive |
| Active Area | 387.36×387.36 mm |
| Outline | 393.26×393.26×56 mm , Videowall Seam 5.9 mm |
| Surface | Antiglare (Haze 44%) |
| Contrast Ratio | 4000:1 (Typ.) |
| Display Colors | 16.7M (8-bit) , CIE1931 72% |
| Response Time | 8 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLED Embedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 8-bit) , 51 pins |
| Input Voltage | 12.0V (Typ.) |
| Panel Model | LTI216XM01 |
|---|---|
| Panel Brand | SAMSUNG |
| Descrition | a-Si TFT-LCD ,21.6 inch, 960×960 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 65 °C |
| Remarks | E-DID, Super narrow Bezel (5.9mm Active to Active) |
| Dot Resolution | 960(RGB)×960 |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 62 PPI |
| Aspect Ratio | 1:1 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.1345×0.4035 mm (H×V) |
| Pixel Pitch | 0.4035×0.4035 mm (H×V) |
| Weight | 3.80/4.20Kgs (Typ./Max.) |
| Surface | Antiglare (Haze 44%) |
| Active Area | 387.36×387.36 mm (H×V) |
| Outline Dimension | 393.26×393.26 mm (H×V) |
| Outline Depth | 40.0/56.0 (Typ./Max.) mm |
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AMS549HQ02 | Samsung | 5.5" | 720×1280 |
| AMS520BQ12-0 | Samsung | 5.2" | 1080×1920 |
| AMS497DX12-0 | Samsung | 5.0" | 720×1280 |
| AMS163AN01 | Samsung | 1.63" | 320×320 |
| AMS510CV02 | Samsung | 5.1" | 1080×1920 |
| AMS510CV01 | Samsung | 5.1" | 1080×1920 |
| AMS302AK03 | Samsung | 3.0" | 720×480 |
| AMS353FD01-0 | Samsung | 3.5" | 480×800 |
