Product Details:
|
| Diagonal Size: | 15.4 Inch | Resolution: | 1280×800 |
|---|---|---|---|
| Active Area: | 331.2×207 Mm | Contrast Ratio: | 700:1 (Typ.) |
| Display Colors: | 262K (6-bit) | Frequency: | 60Hz |
| High Light: | industrial touch screen display,industrial lcd panel |
||

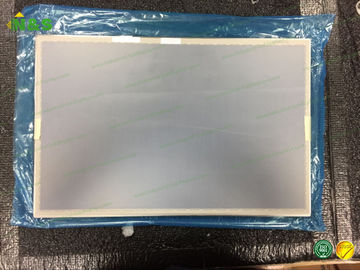

Normally White G154I1-L01 CMO 15.4 inch Industrial LCD Displays for 60Hz resolution new and original
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
G154I1-L01 Basic Information
| Panel Model | G154I1-L01 |
| Panel Brand | CMO |
| Descrition | a-Si TFT-LCD ,15.4 inch, 1280×800 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -30 ~ 80 °C |
| Storage Temperature | -40 ~ 85 °C |
G154I1-L01 Mechanical Features
| Dot Resolution | 1280(RGB)×800 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 98 PPI |
| Aspect Ratio | 16:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.08625×0.25875 mm (H×V) |
| Pixel Pitch | 0.25875×0.25875 mm (H×V) |
| Weight | 1.29/1.35Kgs (Typ./Max.) |
| Surface | Glare (Haze 0%), Hard coating (3H), Antireflection |
| Active Area | 331.2×207 mm (H×V) |
| Bezel Area | 334.5×210.3 mm (H×V) |
| Outline Dimension | 352×230 mm (H×V) |
| Outline Depth | 15.8±0.5 mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
G154I1-L01 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 700 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 5/11 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| White Variation | 1.25/1.40 (Typ./Max.)(5 points) |
| Sunlight Readable | Y |
