Product Details:
|
| Resolution: | 240×128 | Panel Size: | 5.1 Inch |
|---|---|---|---|
| Panel Type: | FSTN-LCD | Active Area: | 119.97×63.97 Mm |
| Contrast Ratio: | 20:1 (Typ.) | Frequency: | 75Hz |
| High Light: | monochrome lcd panel,hitachi lcd screen |
||

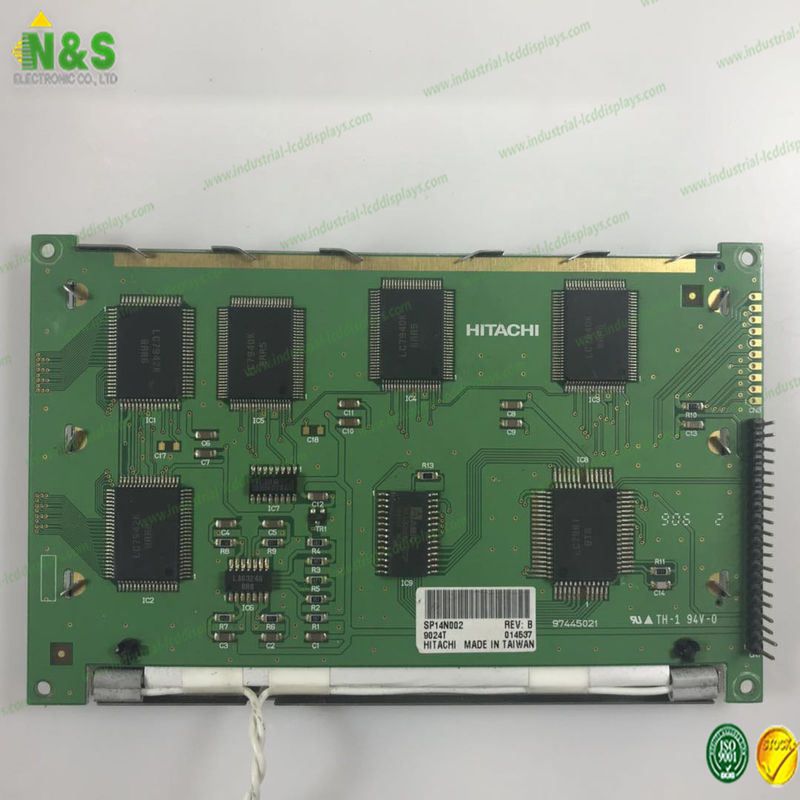

SP14N002 HITACHI 5.1 inch 240×128 Surface Antiglare, Hard coating (3H) Frequency 75Hz new and original in stock
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
Feedback:
(1) Your early confirmation will be highly appreciated after receiving the item.
(2) If you are satisfied with our item, pls contact to us also for other items, actually, we are not only own professional sourcing lines for AUO, LG, Samsung, Tianma, KOE, NEC, Hitachi, Optrex and more.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| NP055IA-03E | Innolux | 5.5" | 1080×1920 |
| CLAG045LA011 AXA | CPT | 4.5" | 480×854 |
| LC550EGY-SHM1 | LG Display | 55" | 3840×2160 |
| LC550EQK-FGK3 | LG Display | 55" | 3840×2160 |
| H466TAN01.2 | AUO | 4.7" | 720×1280 |
| C050SWZ3-1 | IVO | 5.0" | 540×960 |
| C017SN81-0 | IVO | 1.8" | 128×160 |
| N080ICE-GB1 CELL | Innolux | 8.0" | 800×1280 |
| CLAF055LA41 TXX | CPT | 5.5" | 540×960 |
| V650DJ4-QS5 | Innolux | 65" | 3840×2160 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
SP14N002 Basic Information
| Panel Model | SP14N002 |
| Panel Brand | HITACHI |
| Descrition | FSTN-LCD ,5.1 inch, 240×128 |
| Panel Type | FSTN-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Vibration Resistance | 2.0G (19.6 m/s²) |
SP14N002 Mechanical Features
| Dot Resolution | 240×128 |
| Pixel Configuration | Rectangle |
| Pixel Density | 50 PPI |
| Aspect Ratio | 17:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.50×0.50 mm (H×V) |
| Pixel Pitch | 0.50×0.50 mm (H×V) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 119.97×63.97 mm (H×V) |
| Bezel Area | 124.0×70.0 mm (H×V) |
| Outline Dimension | 159.4×101 mm (H×V) |
| Outline Depth | 7.7/12.0 (Typ./Max.) mm |
| Holes & Brackets | Face mounting holes (4-Φ3.0) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
SP14N002 Optical Features
| Display Mode | STN, Black/White (Negative), Transmissive |
| Brightness | 90 cd/m² (Typ.) |
| Contrast Ratio | 20 : 1 (Typ.) (Transmissive) |
| Display Color | Monochrome () |
| Response Time | 160/110 (Typ.)(Tr/Td) |
| Viewing Angle | 40 (Typ.)(CR≥2, Φ2-Φ1) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White Variation | 1.30 (Max.)(9 points) |
| Sunlight Readable | N |
