Product Details:
|
| Panel Model: | LP156WHU-TPD1 | Panel Size: | 15.6 Inch |
|---|---|---|---|
| Resolution: | 1366×768 | Active Area: | 344.232×193.536 Mm |
| Contrast Ratio: | 350:1 (Typ.) | Frequency: | 60Hz |
| High Light: | industrial touch screen display,industrial lcd panel |
||

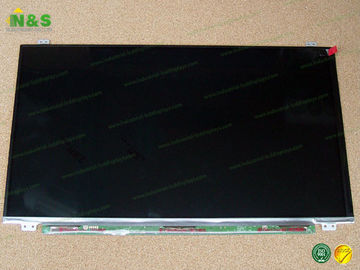

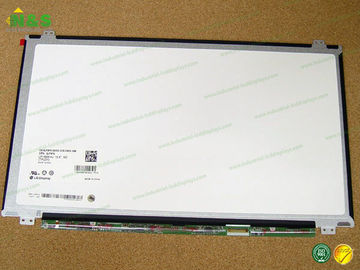

Resolution 1366×768 Normally White LP156WHU-TPD1 TFT LCD Module , 15.6 inch Surface Antiglare, Hard coating (3H)
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
LP156WHU-TPD1 Basic Information
| Panel Model | LP156WHU-TPD1 |
| Panel Brand | LG Display |
| Descrition | a-Si TFT-LCD ,15.6 inch, 1366×768 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | LP156WHU (TP)(D1) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | Dell D/PN: 0MN2MC |
LP156WHU-TPD1 Mechanical Features
| Dot Resolution | 1366(RGB)×768 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 100 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.084×0.252 mm (H×V) |
| Pixel Pitch | 0.252×0.252 mm (H×V) |
| Weight | 370g (Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 344.232×193.536 mm (H×V) |
| Bezel Area | 347.5×196.8 mm (H×V) |
| Outline Dimension | 359.5×223.5 mm (H×V) |
| Outline Depth | 3.2 (Max.) mm |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Holes & Brackets | Face mounting holes (8 pcs) on up, down slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
