Product Details:
|
| Panel Size: | 10.4 Inch | Dot Resolution: | 640×480 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD | Contrast Ratio: | 900:1 (Typ.) |
| Response Time: | 3/15 (Typ.)(Tr/Td) | Frequency: | 60Hz |
| High Light: | sharp lcd display panels,sharp lcd screen |
||

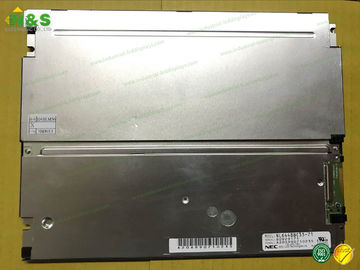

SHARP NL6448BC33-71 10.4 inch TN, Normally White, 640×480 Surface Clear, Hard coating (3H) new and original
NL6448BC33-71 Basic Information
| Panel Model | NL6448BC33-71 |
| Panel Brand | NEC |
| Descrition | a-Si TFT-LCD ,10.4 inch, 640×480 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -30 ~ 80 °C |
| Storage Temperature | -30 ~ 80 °C |
| Vibration Resistance | 2.0G (19.6 m/s²) |
| Remarks | ColorXcell |
NL6448BC33-71 Mechanical Features
| Dot Resolution | 640(RGB)×480 (VGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 76 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.110×0.330 mm (H×V) |
| Pixel Pitch | 0.330×0.330 mm (H×V) |
| Weight | 475/500g (Typ./Max.) |
| Surface | Clear, Hard coating (3H) |
| Active Area | 211.2×158.4 mm (H×V) |
| Bezel Area | 215.4×161.8 mm (H×V) |
| Outline Dimension | 243×185.1 mm (H×V) |
| Outline Depth | 10.5±0.5 mm |
| Holes & Brackets | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
| LS024Q8UC92 | SHARP | 2.4" | 240×320 |
| LK235D3HA0S | SHARP | 23.6" | 1920×1080 |
