Product Details:
|
| Panel Model: | LQ084S3LG02 | Panel Type: | A-Si TFT-LCD |
|---|---|---|---|
| Panel Size: | 8.4 Inch | Resolution: | 800×600 |
| Dot Pitch: | 0.071×0.213 Mm (H×V) | Pixel Pitch: | 0.213×0.213 Mm (H×V) |
| High Light: | sharp lcd display panels,sharp lcd screen |
||

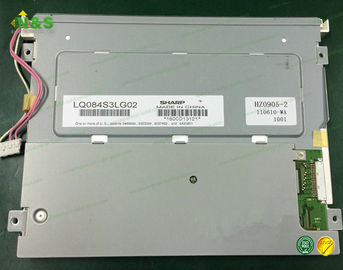

LQ084S3LG02 Resolution 800(RGB)×600 (SVGA) 8.4 inch Brightness 350 cd/m² (Typ.) Frequency 60Hz
We Can Do for You:
1) One-to-one service with efficient& professional support;
2) Protection of your design and all your private information;
3) We could supply hard-to-findLCD screen replacements;
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: Wecontinuously strive to find ways of reducing our production costs, and passing the savings to you.
Our Company Strength in LCD Screen Sourcing:
1. ISO9001 certificated, Factory Direct Supplied
2. Competitive Price and Short Lead-time
4. Professional Team with Rich Experiences in LCD screen international trade communication.
5. Small MOQ Support & Fast Response to Customers
6. Long Product Life Time
7. 1 Year warranty for our LCD screen replacements.
LQ084S3LG02 Basic Information
| Panel Model | LQ084S3LG02 |
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,8.4 inch, 800×600 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -30 ~ 80 °C |
| Storage Temperature | -30 ~ 80 °C |
| Vibration Resistance | 2.0G (19.6 m/s²) |
LQ084S3LG02 Mechanical Features
| Dot Resolution | 800(RGB)×600 (SVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 119 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.071×0.213 mm (H×V) |
| Pixel Pitch | 0.213×0.213 mm (H×V) |
| Weight | 450g (Max.) |
| Surface | Antiglare, Hard coating (2H) |
| Active Area | 170.4×127.8 mm (H×V) |
| Bezel Area | 173.4×130.8 mm (H×V) |
| Outline Dimension | 199.5×149.5 mm (H×V) |
| Outline Depth | 12.0 (Max.) mm |
| Holes & Brackets | Face mounting holes (4- Φ3.4) on left, right slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ0DZC0156 | SHARP | 40" | 1920×1080 |
| LX080M1BB01 | SHARP | 8.0" | 1920×1200 |
| LS050K3SX09 | SHARP | 5.0" | 720×1280 |
| LQ315D1EG02 | SHARP | 31.5" | 3840×2160 |
| JE0DZ1C0093 | SHARP | 60" | 1920×1080 |
| LK460D3FZ10 | SHARP | 46" | 1920×1080 |
| LQ0DZC0128 | SHARP | 31.5" | 1366×768 |
| LQ0DASA469 | SHARP | 4.7" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
