Product Details:
|
| Panel Type: | CSTN-LCD | Panel Size: | 5.0 Inch |
|---|---|---|---|
| Resolution: | 320×240 | Active Area: | 100.775×75.575 Mm |
| Outline: | 134×113×10.5 Mm | Pixel Pitch: | 0.330×0.330 Mm (H×V) |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||

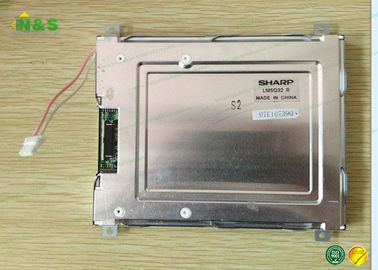

Normally Black LM5Q32R 5.0 inch, 320×240 new and original Active Area 100.775×75.575 mm Outline 134×113×10.5 mm
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
LM5Q32R Basic Information
| Panel Model | LM5Q32R |
| Panel Brand | SHARP |
| Descrition | CSTN-LCD ,5.0 inch, 320×240 |
| Panel Type | CSTN-LCD |
| Operating Temperature | 0 ~ 60 °C |
| Storage Temperature | -25 ~ 65 °C |
LM5Q32R Mechanical Features
| Dot Resolution | 320(RGB)×240 (QVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 80 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.105×0.315 mm (H×V) |
| Pixel Pitch | 0.315×0.315 mm (H×V) |
| Weight | 150g (Typ.) |
| Active Area | 100.775×75.575 mm (H×V) |
| Bezel Area | 103.4×78.3 mm (H×V) |
| Outline Dimension | 134×113 mm (H×V) |
| Outline Depth | 10.5 (Max.) mm |
| Holes & Brackets | Face mounting holes (4-Φ3.0) on up, down slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LM5Q32R Optical Features
| Display Mode | STN, Normally Black, Transmissive |
| Brightness | 120 cd/m² (Typ.) |
| Contrast Ratio | 30 : 1 (Typ.) (Transmissive) |
| Display Color | Color () |
| Response Time | 150/50 (Typ.)(Tr/Td) |
| Viewing Angle | 35/35/15/25 (Typ.)(CR≥5) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.290; Wy:0.300 |
| Sunlight Readable | N |
LM5Q32R Electronics Feature
| Reverse Scan | No |
