Product Details:
|
| Panel Model: | LJ64EU34 | Panel Size: | 8.9 Inch |
|---|---|---|---|
| Resolution: | 640×400 | Active Area: | 191.9×119.9 Mm |
| Outline: | 246×158 Mm | Brightness: | 115 Cd/m² (Typ.) |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||

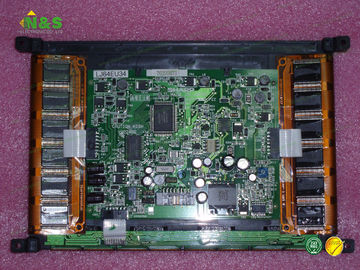

New and original 8.9 inch LJ64EU34 640×400 resolution Aspect Ratio 16:10 (H:V) Brightness 115 cd/m² (Typ.)
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
Feedback:
(1) Your early confirmation will be highly appreciated after receiving the item.
(2) If you are satisfied with our item, pls contact to us also for other items, actually, we are not only own professional sourcing lines for AUO, LG, Samsung, Tianma, KOE, NEC, Hitachi, Optrex and more.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ0DZC0156 | SHARP | 40" | 1920×1080 |
| LX080M1BB01 | SHARP | 8.0" | 1920×1200 |
| LS050K3SX09 | SHARP | 5.0" | 720×1280 |
| LQ315D1EG02 | SHARP | 31.5" | 3840×2160 |
| JE0DZ1C0093 | SHARP | 60" | 1920×1080 |
| LK460D3FZ10 | SHARP | 46" | 1920×1080 |
| LQ0DZC0128 | SHARP | 31.5" | 1366×768 |
| LQ0DASA469 | SHARP | 4.7" | 720×1280 |
| LQ133M1JW08A | SHARP | 13.3" | 1920×1080 |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
LJ64EU34 Basic Information
| Panel Model | LJ64EU34 |
| Panel Brand | SHARP |
| Descrition | EL ,8.9 inch, 640×400 |
| Panel Type | EL |
| Operating Temperature | -5 ~ 55 °C |
| Storage Temperature | -40 ~ 80 °C |
LJ64EU34 Mechanical Features
| Dot Resolution | 640×400 |
| Pixel Configuration | Rectangle |
| Pixel Density | 84 PPI |
| Aspect Ratio | 16:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.300×0.300 mm (H×V) |
| Pixel Pitch | 0.300×0.300 mm (H×V) |
| Weight | 450g |
| Active Area | 191.9×119.9 mm (H×V) |
| Outline Dimension | 246×158 mm (H×V) |
| Outline Depth | 26 mm |
| Holes & Brackets | Face mounting holes (4 pcs) on left & righ side brackets |
| Landscape or Portrait | Landscape type |
LJ64EU34 Optical Features
| Brightness | 115 cd/m² (Typ.) |
| Display Color | Monochrome () |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Sunlight Readable | N |
