Product Details:
|
| Panel Size: | 9.4 Inch | Resolution: | 640×480 |
|---|---|---|---|
| Panel Type: | FSTN-LCD | Active Area: | 191.97×143.97 Mm |
| Outline: | 253×174 Mm | Weight: | 340g (Typ.) |
| Brightness: | 45 Cd/m² (Typ.) | ||
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||

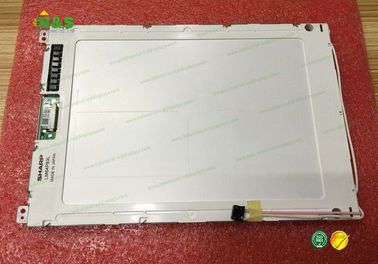

Sharp 9.4 inch LM64K83 640×480 Active Area 191.97×143.97 mm Outline 253×174 mm LCD Panel Module new and original
LM64K83 Basic Information
| Panel Model | LM64K83 |
| Panel Brand | SHARP |
| Descrition | FSTN-LCD ,9.4 inch, 640×480 |
| Panel Type | FSTN-LCD |
| Operating Temperature | 0 ~ 45 °C |
| Storage Temperature | -25 ~ 60 °C |
LM64K83 Mechanical Features
| Dot Resolution | 640×480 (VGA) |
| Pixel Configuration | Rectangle |
| Pixel Density | 84 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.30×0.30 mm (H×V) |
| Pixel Pitch | 0.30×0.30 mm (H×V) |
| Weight | 340g (Typ.) |
| Active Area | 191.97×143.97 mm (H×V) |
| Bezel Area | 201.4×153.4 mm (H×V) |
| Outline Dimension | 253×174 mm (H×V) |
| Outline Depth | 7.0 (Max.) mm |
| Holes & Brackets | Face mounting holes (4-Φ3.5) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
BOE BP080WX7-100 Optical Features
Display Mode : HFFS, Normally Black, Transmissive
Brightness : 0 cd/m²
Contrast Ratio : 900 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (6-bit + Hi-FRC)
Color Gamut : 55% NTSC (CIE1931)
Response Time : 24 (Typ.)(Tr+Td)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.301; Wy:0.321
