Product Details:
|
| Panel Model: | LQ150X1LGN1 | Panel Brand: | SHARP |
|---|---|---|---|
| Dot Resolution: | 1024(RGB)×768 (XGA) | Brightness: | 250 Cd/m² (Typ.) |
| Frequency: | 60Hz | Panel TypLamp Type: | CCFL |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||

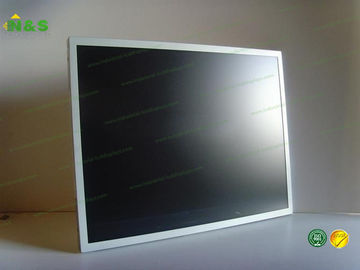

Sharp LQ150X1LGN1 TFT-LCD Module ,15.0 inch, 1024×768 Normally White Frequency 60Hz Aspect Ratio 4:3 (H:V)
LQ150X1LGN1 Basic Information
| Panel Model | LQ150X1LGN1 |
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,15.0 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -25 ~ 60 °C |
LQ150X1LGN1 Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 85 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.099×0.297 mm (H×V) |
| Pixel Pitch | 0.297×0.297 mm (H×V) |
| Weight | 1.10Kgs (Max.) |
| Surface | Antiglare (Haze 28%), Hard coating (2H) |
| Active Area | 304.1×228.1 mm (H×V) |
| Bezel Area | 308.1×232.1 mm (H×V) |
| Outline Dimension | 326×252 mm (H×V) |
| Outline Depth | 11.0±0.5 mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
LQ150X1LGN1 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 350 : 1 (Typ.) (Transmissive) |
| Display Color | 16.2M (6-bit + FRC) |
| Response Time | 5/20 (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/45/55 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25 (Max.)(5 points) |
| Sunlight Readable | N |
Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.
