Normally Black new and original LQ042T1VW01 4.2 inch SHARP lcd panel module Outline 109.5×69×10.1 mm

Normally Black new and original LQ042T1VW01 4.2 inch SHARP lcd panel module Outline 109.5×69×10.1 mm
Normally Black new and original LQ042T1VW01 4.2 inch SHARP lcd panel module Outline 109.5×69×10.1 mm

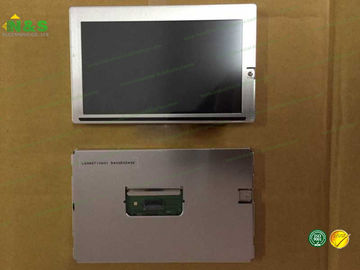

Large Image :  Normally Black new and original LQ042T1VW01 4.2 inch SHARP lcd panel module Outline 109.5×69×10.1 mm

Product Details:
Place of Origin: JAPAN
Brand Name: SHARP
Certification: CE
Model Number: LQ042T1VW01
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 working days after payment confirmation
Payment Terms: T/T, Paypal, Western Union, MoneyGram
Supply Ability: 100 PCS / DAY

Normally Black new and original LQ042T1VW01 4.2 inch SHARP lcd panel module Outline 109.5×69×10.1 mm

Description
Panel Type: A-Si TFT-LCD Active Area: 92.88×52.632 Mm
Panel Size: 4.2 Inch Resolution: 480×272
Surface: Antiglare, Hard Coating (3H) Contrast Ratio: 1300:1 (Typ.)
High Light:

sharp lcd display panels

,

sharp lcd screen

Normally Black new and original LQ042T1VW01 4.2 inch SHARP lcd panel module Outline 109.5×69×10.1 mm



LQ042T1VW01 Basic Information

Panel Model LQ042T1VW01
Panel Brand SHARP
Descrition a-Si TFT-LCD ,4.2 inch, 480×272
Panel Type a-Si TFT-LCD
Operating Temperature -10 ~ 70 °C
Storage Temperature -30 ~ 70 °C


LQ042T1VW01 Mechanical Features

Dot Resolution 480×272(RGB) (WQVGA)
Pixel Configuration RGB Horizontal Stripe
Pixel Density 131 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.1935×0.0645 mm (H×V)
Pixel Pitch 0.1935×0.1935 mm (H×V)
Weight 85g (Max.)
Surface Antiglare, Hard coating (3H)
Active Area 92.88×52.632 mm (H×V)
Bezel Area 94.48×54.272 mm (H×V)
Outline Dimension 109.5×69 mm (H×V)
Outline Depth 9.6±0.5 mm
Holes & Brackets Side mounting holes (4-M2) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without


LQ042T1VW01 Optical Features

Display Mode ASV, Normally Black, Transmissive
Brightness 400 cd/m² (Typ.)
Contrast Ratio 1300 : 1 (Typ.) (Transmissive)
Display Color 16.2M (6-bit + FRC)
Color Gamut 64% NTSC (CIE1931)
Response Time 20 (Typ.)(Tr+Td)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction Symmetry
White color Chromaticity Wx:0.285; Wy:0.300
Sunlight Readable N




Here comes our other LCD panels stock for your easy reference:



Panel Model Brand Size Resolution
LS050K3SX09 SHARP 5.0" 720×1280
LQ315D1EG02 SHARP 31.5" 3840×2160
JE0DZ1C0093 SHARP 60" 1920×1080
LK460D3FZ10 SHARP 46" 1920×1080
LQ0DZC0128 SHARP 31.5" 1366×768
LQ0DASA469 SHARP 4.7" 720×1280
LQ133M1JW08A SHARP 13.3" 1920×1080
LK315T3HC1K SHARP 31.5" 1366×768
LQ055T3SX04 SHARP 5.5" 1080×1920
LQ079L1SX06 SHARP 7.9" 1536×2048

Pls contact to us for more stock information: salespm@nselectronic.com.hk



Company strength:

  1. ISO9001 certificated,Factory Direct Supplied;
  2. RoHS Compliant,Lead Free,Reach Compliant;
  3. Competitive Price and Short Lead-time;
  4. Professional Team with Rich Experiences in Design/Mfg/Quality Control;
  5. Small MOQ Support & Fast Response to Customers;
  6. Long Product Life Time.

Our guarantee:

  (1)  Our all LCD screen will be strictly tested pcs by pcs and shipped with professional & safe package.

(2)  We have 12 months warranty for each LCD display, depend on the different items.

(3)  We will do our best to solve any possible problem of our LCD panels for your after sale. Please contact with us if any needs.
