Product Details:
|
| Descrition: | A-Si TFT-LCD ,15.6 Inch, 1920×1080 | Display Mode: | TN, Normally White, Transmissive |
|---|---|---|---|
| Active Area: | 344.16×193.59 Mm | Outline: | 370×217×9.8 Mm |
| Contrast Ratio: | 800:1 (Typ.) | Frequency: | 60Hz |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||

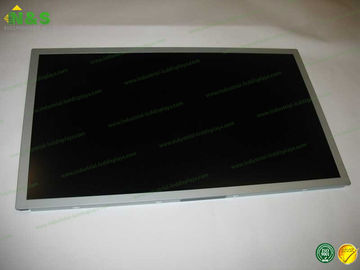

LQ156M1LG21 SHARP 15.6 inch Normally Whitek with 344.16×193.59 mm Active Area Antiglare, Hard coating (3H)
LQ156M1LG21 Basic Information
| Panel Model | LQ156M1LG21 |
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,15.6 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 70 °C |
| Storage Temperature | -30 ~ 70 °C |
| Remarks | its driver has an adjustment to provide four different levels of backlight illumination: 300 nits, 350 nits, 400 nits, and 600 nits. Brightness figure quoted is the factory setting. |
Our Advantages
LQ156M1LG21 Mechanical Features
| Dot Resolution | 1920(RGB)×1080 (FHD) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 141 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.05975×0.17925 mm (H×V) |
| Pixel Pitch | 0.17925×0.17925 mm (H×V) |
| Weight | 950g (Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 344.16×193.59 mm (H×V) |
| Bezel Area | 349.0×198.4 mm (H×V) |
| Outline Dimension | 370×217 mm (H×V) |
| Outline Depth | 5.5/9.8 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
FAQ:
1. Q: Are you a manufacturer or trading company?
A: We are a trading company who has been specializing in marketing LCD display for 6 years.
2. Q:What’s the quality of your products?
A: In visual inspection, we will make sure no damage, no scratches ,no dusty ,no flaws. And in function inspection, we make sure all functions are 100% tested ok.
3. Q: What is your after-sale service?
A: We offer 100% guarantee on our product. We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
4. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
5. Q: When will you make the delivery?
A: We can make the delivery for the LCD panels you want within 1-3 working days after receipt of payment.
6. Q: what brand of screen could we handle?
A: We can handle LCD panels for the below brand: Samsung, LG, AUO, Sharp, NEC, Hitachi industrial screen and more.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| C060SWA4-0 | IVO | 6.0" | 720×1280 |
| C060SWA3 R0 | IVO | 6.0" | 720×1280 |
| C080SWW3-0 | IVO | 8.0" | 800×1280 |
| CLAP042JB01 DW | CPT | 4.2" | 480×272 |
| BP096WX7-100 | BOE | 9.6" | 800×1280 |
| V500HK3-PS1 | Innolux | 50" | 1920×1080 |
| ST3151A04-7 | CSOT | 31.5" | 1366×768 |
| HSD0702FW1-A00 | HannStar | 7.0" | 1024×600 |
| TPF0702002N | JDI | 7.0" | 1200×1920 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
