Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 8.4 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×600 (SVGA) | Aspect Ratio: | 4:3 (H:V) |
| Active Area: | 211.2×158.4 Mm | Contrast Ratio: | 600:1 (Typ.) |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
Normally White 8.4 inch LQ104S1LG61 TFT LCD Module SHARP for Industrial Application panel
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
Packing & Delivery for our LCD Screen Panel Replacements:
LQ104S1LG61 Specification
| Panel Model | LQ104S1LG61 |
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,10.4 inch, 800×600 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 211.2×158.4 mm |
| Outline | 246.5×179.4 mm |
| Surface | Antiglare, Hard coating (3H), Antireflection |
| Contrast Ratio | 600:1 (Typ.) |
| Display Colors | 262K (6-bit) |
| Response Time | 10/25 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type | 2 pcs CCFL Without Driver |
| Signal Interface | LVDS (1 ch, 6-bit) , 20 pins |
| Input Voltage | 3.3/5.0V (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM016LC1S07 | SHARP | 1.9" | 96×128 |
| LS050K3SX06A | SHARP | 5.0" | 720×1280 |
| LK460D3HA10 | SHARP | 46" | 1920×1080 |
| LK315T3HB874 | SHARP | 31.5" | 1366×768 |
| LK315T3HB873 | SHARP | 31.5" | 1366×768 |
| LQ0DZC0156 | SHARP | 40" | 1920×1080 |
| LX080M1BB01 | SHARP | 8.0" | 1920×1200 |
| JE0DZ1C0093 | SHARP | 60" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

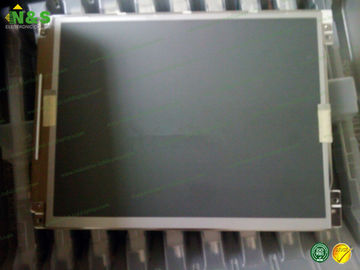

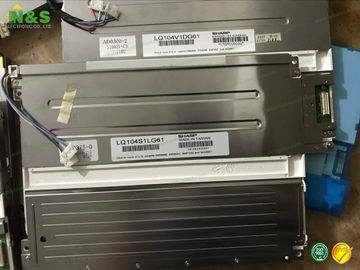

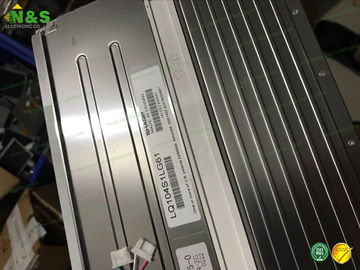

LQ104S1LG61 Picture
