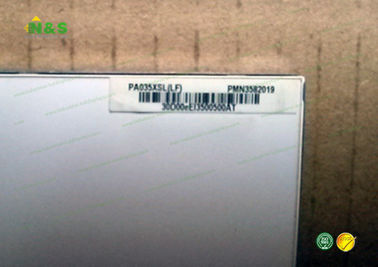

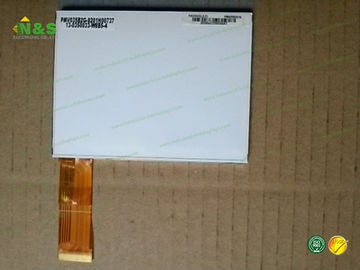

Product Details:
|
| Panel Model: | PA035XSL | Panel Brand: | PVI |
|---|---|---|---|
| Size: | 3.5 Inch | Panel Type: | A-Si TFT-LCD |
| Active Area: | 71.6×52.65 Mm | Surface: | Antiglare |
| High Light: | industrial lcd screen,industrial lcd panel |
||
| Panel Model | PA035XSL |
|---|---|
| Panel Brand | PVI |
| Descrition | a-Si TFT-LCD ,3.5 inch, 320×234 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 71.6×52.65 mm |
| Outline | 83.5×63.1×3.9 mm |
| Surface | Antiglare |
| Contrast Ratio | 350:1 (Typ.) |
| Display Colors | Full color |
| Response Time | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle | 50/50/15/35 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type | 3S2P WLED Without Driver |
| Signal Interface | TFT Specific Analog RGB , 30 pins |
PA035XSL Mechanical Features
| Dot Resolution | 320(RGB)×234 |
|---|---|
| Pixel Configuration | RGB Delta |
| Pixel Density | 113 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0746×0.225 mm (H×V) |
| Weight | 32±5g |
| Surface | Antiglare |
| Active Area | 71.6×52.65 mm (H×V) |
| Bezel Area | 73.6×54.65 mm (H×V) |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
Our Company Strength in LCD Screen Sourcing:
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| EK014BS012 | PDI | 1.44" | 128×96 |
| EK014BS011 | PDI | 1.44" | 128×96 |
| EG020BS012 | PDI | 2.0" | 200×96 |
| EG020BS011 | PDI | 2.0" | 200×96 |
| EG020AS013 | PDI | 2.0" | 200×96 |
| EG020AS012 | PDI | 2.0" | 200×96 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Contact Person: savvy,ren
Tel: +8613302928193
