Samsung 17.0 inch LTM170E8-L01 VA LCM 1280×1024 280nits CCFL LVDS 30pins

Samsung 17.0 inch LTM170E8-L01 VA LCM 1280×1024 280nits CCFL LVDS 30pins

    • Samsung  	17.0 inch LTM170E8-L01  VA LCM 1280×1024 280nits CCFL LVDS 30pins
    • Samsung  	17.0 inch LTM170E8-L01  VA LCM 1280×1024 280nits CCFL LVDS 30pins
  • Samsung  	17.0 inch LTM170E8-L01  VA LCM 1280×1024 280nits CCFL LVDS 30pins

    Product Details:

    Place of Origin: Korea
    Brand Name: Samsung
    Certification: ISO9001
    Model Number: LTM170E8-L01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
    Delivery Time: 2-3 working days after payment confirmation
    Payment Terms: T/T, Western Union,paypal
    Supply Ability: 100 PCS / DAY
    Contact Now
    Detailed Product Description
    Series: LTM170E8 Keywords Desc.: Samsung 17.0" VA LCM 1280×1024 280nits CCFL LVDS 30pins
    Product Class: Graphic LCD Display Product Tags: Color TFT-LCD,Transmissive LCD
    Application: Desktop Monitor Panel Type: A-Si TFT-LCD
    Panel Composition: LCM Panel Size: 17.0"
    Resolution: 1280×1024 Aspect Ratio: 5:4 (W:H)
    Form Factor: Flat Rectangle Display Orientation: Landscape Type
    Active Area: 337.92 (W) × 270.336 (H) Mm (A.A) Viewing Area: 340.92 (W) × 273.336 (H) Mm (V.A)
    Outline Dimension: 354.9 (W) × 290.3 (H) Mm Max. Depth: 13.3 Mm
    Weight: 1.70Kgs (Max.) LC Family: VA Family
    Polarizer: Transmissive Brightness: 280 (Typ.)

    Samsung 17.0 inch LTM170E8-L01 VA LCM 1280×1024 280nits CCFL LVDS 30pins

    Our Service
    • Long lasting product cycle for continuity thru all phases of project rollouts and servicing
    • Competitive price for different brands hard disk.
    • Mass stock with the better price.
    • Multiple options.
    • Warranty service.
    • Better team to provide the before-sales, on-sale and after-sale service
    • Pls send us message if any hard disk needed.

    LTM170E8-L01 Main Parameters

    Panel Brand :SAMSUNG
    Panel Model :LTM170E8-L01
    Panel Type :a-Si TFT-LCD , LCM
    Panel Size :17.0 inch
    Resolution :1280(RGB)×1024 , SXGA
    Display Mode :PVA, Normally Black, Transmissive
    Active Area :337.92×270.336 mm
    Outline :354.9×290.3×13.3 mm
    Surface :Antiglare (Haze 44%), Hard coating (3H)
    Brightness :280 cd/m2 (Typ.)
    Contrast Ratio :1500:1 (Typ.)
    Display Colors :16.7M (8-bit) , CIE1931 72%
    Response Time :15/10 (Typ.)(Tr/Td)
    Viewing Angle :89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :4 pcs CCFL
    Signal Interface :LVDS (2 ch, 8-bit) , 30 pins
    Input Voltage :5.0V (Typ.)



    SAMSUNG LTM170E8-L01 Mechanical Features

    Panel Size :17.0 inch
    Dot Resolution :1280(RGB)×1024 (SXGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :96 PPI
    Aspect Ratio :5:4 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.088×0.264 mm (H×V)
    Pixel Pitch :0.264×0.264 mm (H×V)
    Weight :1.70Kgs (Max.)
    Surface :Antiglare (Haze 44%), Hard coating (3H)
    Active Area :337.92×270.336 mm (H×V)
    Bezel Area :340.92×273.336 mm (H×V)
    Outline Dimension :354.9×290.3 mm (H×V)
    Outline Depth :12.8±0.5 mm
    Holes & Brackets :Side mounting holes (4-M3) on left, right bezel
    Landscape or Portrait :Landscape type
    Touch Panel :Without


    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    AMS549HQ02Samsung5.5"720×1280
    AMS520BQ12-0Samsung5.2"1080×1920
    AMS497DX12-0Samsung5.0"720×1280
    AMS163AN01Samsung1.63"320×320
    AMS510CV02Samsung5.1"1080×1920
    AMS510CV01Samsung5.1"1080×1920
    AMS302AK03Samsung3.0"720×480

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

    Packaging & Shipping for Our LCD panel
    1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
    2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
    Other shipping terms can also be arranged according to specific requirements.

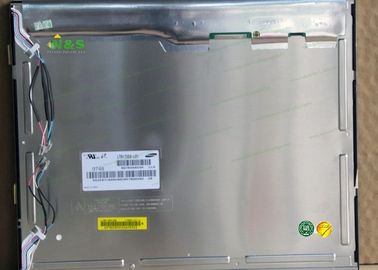

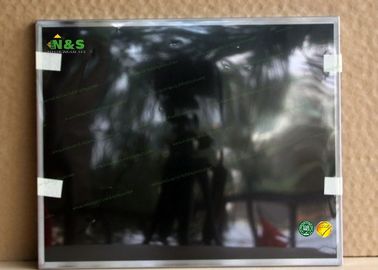

    LTM170E8-L01 Picture

    Samsung  	17.0 inch LTM170E8-L01  VA LCM 1280×1024 280nits CCFL LVDS 30pins

    Samsung  	17.0 inch LTM170E8-L01  VA LCM 1280×1024 280nits CCFL LVDS 30pins
