Samsung 4.8 inch SAMSUNG LCD Displays with 103.8×62.28 mm Active Area

Samsung 4.8 inch SAMSUNG LCD Displays with 103.8×62.28 mm Active Area

Samsung  	4.8 inch  	SAMSUNG LCD Displays with  	103.8×62.28 mm Active Area

Product Details:

Place of Origin: Japan
Brand Name: Samsung
Certification: ISO9001
Model Number: LTE480WV-F01

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 9999
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 working days after payment confirmation
Payment Terms: T/T, Western Union,paypal
Supply Ability: 100 PCS / DAY
Contact Now
Detailed Product Description
Series: LTE480WV Keywords Desc.: Samsung 4.8" TN LCM 800×480 280nits WLED TTL 45pins
Product Class: Graphic LCD Display Product Tags: Color TFT-LCD,Resistive Touch LCD,Transflective LCD,Sunlight Readable
Application: MID UMPC,MP4 PMP,Portable Navigation Panel Type: A-Si TFT-LCD
Panel Composition: LCM Panel Size: 4.8"
Resolution: 800×480 Aspect Ratio: 15:9 (W:H)
Form Factor: Flat Rectangle Display Orientation: Landscape Type
Active Area: 103.8 (W) × 62.28 (H) Mm (A.A) Outline Dimension: 118.2 (W) × 74.28 (H) Mm
LC Family: TN Polarizer: TMR
Brightness: 280 (Typ.) Contrast Ratio: 300:1 (Max.)
Viewing Angle: 65/65/60/50 (Typ.)(CR10) (L/R/U/D) Viewing Direction: 6 O'clock

Samsung 4.8 inch SAMSUNG LCD Displays with 103.8×62.28 mm Active Area


LTE480WV-F01 Main Parameters

Panel Brand :SAMSUNG
Panel Model :LTE480WV-F01
Panel Type :a-Si TFT-LCD , LCM
Panel Size :4.8 inch
Resolution :800×480(RGB) , WVGA
Display Mode :TN, Normally White, TMR
Active Area :103.8×62.28 mm
Outline :118.2×74.28 mm
Brightness :280 cd/m2 (Typ.)
Contrast Ratio :300 : 1 (Typ.)
Display Colors :16.7M (8-bit)
Response Time :22.5 (Typ.)(Tr+Td)
Viewing Angle :65/65/60/50 (Typ.)(CR≥10) (L/R/U/D)
Frequency :60Hz
Lamp Type :7S2P WLED
Signal Interface :Parallel RGB (1 ch, 8-bit) , 45 pins
Input Voltage :3.3V (Typ.)(VCC)



SAMSUNG LTE480WV-F01 Mechanical Features

Panel Size :4.8 inch
Dot Resolution :800×480(RGB) (WVGA)
Pixel Configuration :RGB Horizontal Stripe
Pixel Density :195 PPI
Aspect Ratio :15:9 (H:V)
Form Factor :Flat Rectangle Display
Dot Pitch :0.12975×0.04325 mm (H×V)
Pixel Pitch :0.12975×0.12975 mm (H×V)
Active Area :103.8×62.28 mm (H×V)
Outline Dimension :118.2×74.28 mm (H×V)
Outline Depth :3.93±0.2 mm
Landscape or Portrait :Landscape type
Touch Panel :Embeded (4-wire Resistive)


Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.

Quality Control:

  1. Visual Inspection

Make sure No damage, No Scratches, No dusty, No light leakage.

  1. Function Inspection

Make sure all functions are 100% tested ok

Below are our other LCD panels stock for your easy reference:

Panel ModelBrandSizeResolution
AMS549HQ02Samsung5.5"720×1280
AMS520BQ12-0Samsung5.2"1080×1920
AMS497DX12-0Samsung5.0"720×1280
AMS163AN01Samsung1.63"320×320
AMS510CV02Samsung5.1"1080×1920
AMS510CV01Samsung5.1"1080×1920
AMS302AK03Samsung3.0"720×480
AMS353FD01-0Samsung3.5"480×800
AMS499QP89-0Samsung5.0"1080×1920

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

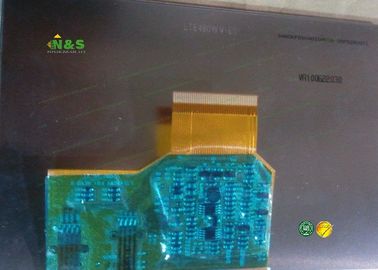

LTE480WV-F01 Picture
