4.0 inch Samsung LTE400WQ-F02 TN LCM 480×272 280nits WLED TTL 50pins

4.0 inch Samsung LTE400WQ-F02 TN LCM 480×272 280nits WLED TTL 50pins

4.0 inch Samsung LTE400WQ-F02  TN LCM 480×272 280nits WLED TTL 50pins

Product Details:

Place of Origin: Japan
Brand Name: Samsung
Certification: ISO9001
Model Number: LTE400WQ-F02

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 working days after payment confirmation
Payment Terms: T/T, Western Union,paypal
Supply Ability: 100 PCS / DAY
Contact Now
Detailed Product Description
Series: LTE400WQ Keywords Desc.: Samsung 4.0" TN LCM 480×272 280nits WLED TTL 50pins
Product Class: Graphic LCD Display Product Tags: Color TFT-LCD,Resistive Touch LCD,Transflective LCD,Sunlight Readable
Application: MP4 PMP,Pocket TV,Portable Navigation Panel Type: A-Si TFT-LCD
Panel Composition: LCM Panel Size: 4.0"
Resolution: 480×272 Aspect Ratio: 16:9 (W:H)
Form Factor: Flat Rectangle Display Orientation: Landscape Type
Active Area: 87.84 (W) × 49.776 (H) Mm (A.A) Outline Dimension: 98.3 (W) × 62.6 (H) Mm
Max. Depth: 6.2 Mm Weight: 65.0g (Typ.)
LC Family: TN Polarizer: TMR
Brightness: 280 (Typ.) Contrast Ratio: 300:1 (Typ.)

4.0 inch Samsung LTE400WQ-F02 TN LCM 480×272 280nits WLED TTL 50pins



LTE400WQ-F02  General Features

Panel Brand : SAMSUNG
Panel Model : LTE400WQ-F02
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 4.0 inch
Resolution : 480×272(RGB) , WQVGA
Display Mode : TN, Normally White, TMR
Active Area : 87.84×49.776 mm
Outline : 98.3×62.6×6.2 mm
Surface : Hard coating (3H)
Brightness : 280 cd/m2 (Typ.)
Contrast Ratio : 300 : 1 (Typ.)
Display Colors : 16.7M (8-bit)
Response Time : 5/20 (Typ.)(Tr/Td)
Viewing Angle : 65/65/50/55 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 8S1P WLED
Signal Interface : Parallel RGB (1 ch, 8-bit) , 50 pins
Input Voltage : 2.5/3.3V (Typ.)(VDD)



SAMSUNG LTE400WQ-F02 Mechanical Features

Panel Size : 4.0 inch
Dot Resolution : 480×272(RGB) (WQVGA)
Pixel Configuration : RGB Horizontal Stripe
Pixel Density : 138 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.183×0.061 mm (H×V)
Pixel Pitch : 0.183×0.183 mm (H×V)
Weight : 65.0g (Typ.)
Surface : Hard coating (3H)
Active Area : 87.84×49.776 mm (H×V)
Outline Dimension : 98.3×62.6 mm (H×V)
Outline Depth : 5.1/6.2 (Typ./Max.) mm
Landscape or Portrait : Landscape type



What’s our advantage compared with other suppliers?

(1). Before shipment, we will test every LCD Screen and ensure the quality.

(2). we provide high quality lcd panels for customers all over the world.

(3) .We have DBS, ISO9001 Certifications for our Panels.

(4) .Excellent service on before-sale, on-sale and after-sale.



FAQ

Q1: How do we place an order?

A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.

Q2: How do we make the payment?

A2: We accept T/T, Western Union, MoneyGram, Paypal.

Q3: What's the delivery time?

A3: The delivery time is normally 1-3 working days after payment.

Q4: How would the goods be shipped?

A4: We ship via DHL, UPS, TNT and others.



Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
AMS549HQ02 Samsung 5.5" 720×1280
AMS520BQ12-0 Samsung 5.2" 1080×1920
AMS497DX12-0 Samsung 5.0" 720×1280
AMS163AN01 Samsung 1.63" 320×320
AMS510CV02 Samsung 5.1" 1080×1920

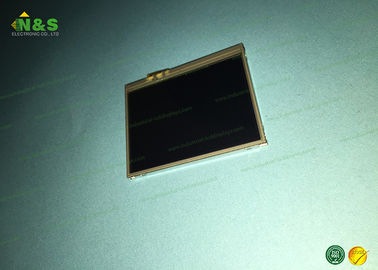

LTE400WQ-F02 Picture

4.0 inch Samsung LTE400WQ-F02  TN LCM 480×272 280nits WLED TTL 50pins
