Product Details:
|
| Series: | FG080000DNCWA | Keywords Desc.: | Data Image 8.0" TN LCM 640×480 320nits CCFL TTL 32pins |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Resistive Touch LCD,Transmissive LCD |
| Application: | Industrial Application | Panel Type: | A-Si TFT-LCD |
| Panel Composition: | LCM | Panel Size: | 8.0" |
| Resolution: | 640×480 | Aspect Ratio: | 4:3 (W:H) |
| Form Factor: | Flat Rectangle Display | Orientation: | Landscape Type |
| Active Area: | 162.24 (W) × 121.68 (H) Mm (A.A) | Outline Dimension: | 183 (W) × 141 (H) Mm |
| Max. Depth: | 16.7 Mm | Weight: | 505g (Typ.) |
| LC Family: | TN | Polarizer: | Transmissive |
| Brightness: | 320 (Typ.) | Contrast Ratio: | 250:1 (Typ.) |
| High Light: | industrial lcd screen,industrial lcd panel |
||
Data Image FG080000DNCWA-T1 8.0 inch TN LCM 640×480 320nits CCFL TTL 32pins
FG080000DNCWA-T1 Quick Details:
| Panel Brand : | Data Image |
| Panel Model : | FG080000DNCWA-T1 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 8.0 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 162.24×121.68 mm |
| Outline : | 183×141×16.7 mm |
| Surface : | Antiglare, Hard coating |
| Brightness : | 320 cd/m2 (Typ.) |
| Contrast Ratio : | 250:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 15/35 (Typ.)(Tr/Td) |
| Viewing Angle : | 65/65/65/65 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 1 pcs CCFL |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 32 pins |
| Input Voltage : | 3.3/5.0V (Typ.)(VCC) |
| Panel Size : | 8.0 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 100 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0845×0.2535 mm (H×V) |
| Pixel Pitch : | 0.2535×0.2535 mm (H×V) |
| Weight : | 505g (Typ.) |
| Surface : | Antiglare, Hard coating |
| Active Area : | 162.24×121.68 mm (H×V) |
| Outline Dimension : | 183×141 mm (H×V) |
| Outline Depth : | 16.2±0.5 mm |
| Holes & Brackets : | Rear mounting holes (4-Φ2.2) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (8-wire Resistive) |
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ED133TT1 | E Ink | 13.3" | 2200×1650 |
| ED060SD1 | E Ink | 6.0" | 600×800 |
| ED060SCT | E Ink | 6.0" | 600×800 |
| ET043OC1 | E Ink | 4.4" | 360×640 |
| EN133UT1 | E Ink | 13.3" | 1600×1200 |
| ED047TC1 | E Ink | 4.7" | 540×960 |
| ED133UT1 | E Ink | 13.3" | 1600×1200 |
| ES133UT1 | E Ink | 13.3" | 1600×1200 |
| ED060SCQ | E Ink | 6.0" | 600×800 |
| ED097OD2 | E Ink | 9.7" | 1200×825 |

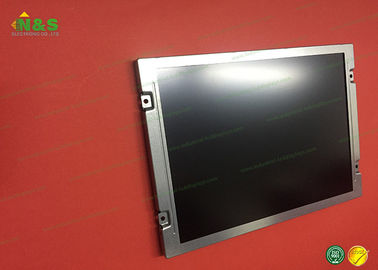

FG080000DNCWA-T1 Picture
