LMS430HF27 Samsung LCD Panel 4.3 inch VA LCM 480×272 500nits WLED TTL 45pins

LMS430HF27 Samsung LCD Panel 4.3 inch VA LCM 480×272 500nits WLED TTL 45pins

LMS430HF27 Samsung LCD Panel 4.3 inch VA LCM 480×272 500nits WLED TTL 45pins

Product Details:

Place of Origin: Japan
Brand Name: Samsung
Certification: ISO9001
Model Number: LMS430HF27

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 working days after payment confirmation
Payment Terms: T/T, Western Union,paypal
Supply Ability: 100 PCS / DAY
Contact Now
Detailed Product Description
Series: LMS430HF Keywords Desc.: Samsung 4.3" VA LCM 480×272 500nits WLED TTL 45pins
Product Class: Graphic LCD Display Product Tags: Color TFT-LCD,High Brightness LCD,Transflective LCD,Sunlight Readable
Application: MP4 PMP,Pocket TV,Portable Navigation Panel Type: A-Si TFT-LCD
Panel Composition: LCM Panel Size: 4.3"
Resolution: 480×272 Aspect Ratio: 16:9 (W:H)
Form Factor: Flat Rectangle Display Orientation: Landscape Type
Active Area: 95.04 (W) × 53.856 (H) Mm (A.A) Viewing Area: 96.44 (W) × 55.23 (H) Mm (V.A)
Outline Dimension: 105.5 (W) × 67.2 (H) Mm Weight: 45.0g (Typ.)
LC Family: VA Family Polarizer: Transflective
Brightness: 500 (Typ.) Contrast Ratio: 800:1 (Typ.)

Samsung LMS430HF27 4.3 inch VA LCM 480×272 500nits WLED TTL 45pins

LMS430HF27 Main Parameters

Panel Brand : SAMSUNG
Panel Model : LMS430HF27
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 4.3 inch
Resolution : 480×272(RGB) , WQVGA
Display Mode : VA, Normally Black, Transflective
Active Area : 95.04×53.856 mm
Outline : 105.5×67.2 mm
Brightness : 500 cd/m2 (Typ.)
Contrast Ratio : 800:1 (Typ.)(Transmissive)
Display Colors : 16.7M (8-bit)
Response Time : 17/15 (Typ.)(Tr/Td)
Viewing Angle : 70/70/70/70 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 10S1P WLED
Signal Interface : Parallel RGB (1 ch, 8-bit) , 45 pins
Input Voltage : 3.3V (Typ.)



SAMSUNG LMS430HF27 Mechanical Features

Panel Size : 4.3 inch
Dot Resolution : 480×272(RGB) (WQVGA)
Pixel Configuration : RGB Horizontal Stripe
Pixel Density : 128 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.198×0.066 mm (H×V)
Pixel Pitch : 0.198×0.198 mm (H×V)
Weight : 45.0g (Typ.)
Active Area : 95.04×53.856 mm (H×V)
Bezel Area : 96.44×55.23 mm (H×V)
Outline Dimension : 105.5×67.2 mm (H×V)
Outline Depth : 2.9±0.2 mm
Holes & Brackets : Without
Landscape or Portrait : Landscape type
Touch Panel : Without


FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.

Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.


Below are our other LCD panels stock for your easy reference:

Panel Size : 4.3 inch
Dot Resolution : 480×272(RGB) (WQVGA)
Pixel Configuration : RGB Horizontal Stripe
Pixel Density : 128 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.198×0.066 mm (H×V)
Pixel Pitch : 0.198×0.198 mm (H×V)
Weight : 45.0g (Typ.)
Active Area : 95.04×53.856 mm (H×V)
Bezel Area : 96.44×55.23 mm (H×V)
Outline Dimension : 105.5×67.2 mm (H×V)
Outline Depth : 2.9±0.2 mm
Holes & Brackets : Without
Landscape or Portrait : Landscape type
Touch Panel : Without

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

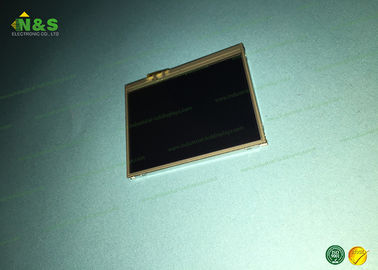

LMS430HF27 Picture

LMS430HF27 Samsung LCD Panel 4.3 inch VA LCM 480×272 500nits WLED TTL 45pins
